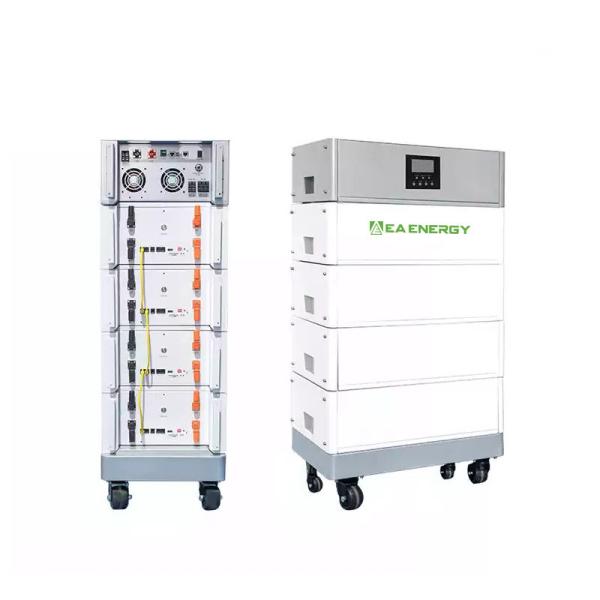

48V 20KWH Stacked Home Solar Power Battery Storage System With 5kw
Inverter
Solar Power Battery Storage System details :
1. Diameter*Height : 603*430*1350mm
2. Nominal Voltage : 51.2V
3. Nominal Capacity : 20kwh
4. Cycle life : 6000 cycles
5. Standard charging ways : CC / CV
6. With or without 5kw Off-Grid Inverter
7. BMS inside ,CE , UL , UN38.3 , MSDS compliant
8. Warrenty: 5 Years
Solar Power Battery Storage System Specifications :
|
output power | 10KW | 15KW | 20KW | 25 KW |
maximum output power | 3KW/4KW/5KW optional | 3KW-5KW optional | 3KW-5KW optional | 3KW-5KW optional |
Rated voltage | 51.2V | 51.2V | 51.2V | 51.2V |
Rated Capacity | 200AH | 300AH | 400AH | 500AH |
Continuous discharge current | 100A | 100A | 100A | 100A |
Peak maximum discharge current | 110A/10S | 110A/10S | 110A/10S | 110A/10S |
Standard charging current | 50A | 50A | 50A | 50A |
Fast charge current | 100A | 100A | 100A | 100A |
Number of expandable batteries | 2~15 | 3-15 | 4-15 | 5-15 |
Optional capacity range | 10.24~76.8KWH | 15.36-76.8KWH | 20.48-76.8KWH | 25.6-76.8KWH |
cooling method | self-cooling | self-cooling | self-cooling | self-cooling |
Battery Type | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate |
design life | ＞15 years@25℃ | ＞15 years@25℃ | ＞15 years@25℃ | ＞15 years@25℃ |
cycle life | ≈10000 times | ≈10000 times | ≈10000 times | ≈10000 times |
≈10000 times | 50HZ/60HZ auto detect | 50HZ/60HZ auto detect | 50HZ/60HZ auto detect | 50HZ/60HZ auto detect |
grid voltage range | 230V(170Vac~280Vac) ±2% 110V(90Vac-280Vac)±2% | 230V(170Vac~280Vac) ±2% 110V(90Vac-280Vac)±2% | 230V(170Vac~280Vac) ±2% 110V(90Vac-280Vac)±2% | 230V(170Vac~280Vac) ±2% 110V(90Vac-280Vac)±2% |
PV maximum input power | 4200W | 4200W | 4200W | 4200W |
MPPT voltage range | 60-115Vdc | 60-115Vdc | 60-115Vdc | 60-115Vdc |
The charging and discharging efficiency of the whole machine | >92% | >92% | >92% | >92% |
battery voltage range | 40.0Vdc~60Vdc ± 0.6Vdc (under voltage alarm / shutdown voltage /
over voltage alarm / over voltage recovery... LCD screen can be
set) | 40.0Vdc~60Vdc ± 0.6Vdc (under voltage alarm / shutdown voltage /
over voltage alarm / over voltage recovery... LCD screen can be
set) | 40.0Vdc~60Vdc ± 0.6Vdc (under voltage alarm / shutdown voltage /
over voltage alarm / over voltage recovery... LCD screen can be
set) | 40.0Vdc~60Vdc ± 0.6Vdc (under voltage alarm / shutdown voltage /
over voltage alarm / over voltage recovery... LCD screen can be
set) |
Warranty | Battery (10 years) Inverter (5 years) | Battery (10 years) Inverter (5 years) | Battery (10 years) Inverter (5 years) | Battery (10 years) Inverter (5 years) |
size/weight | 602*403*750mm with inverter 131KG | 602*403*950mm with inverter 200KG | 602*403*1350mm with inverter 255KG | 602*403*1550mm with inverter 311KG |
Installation method | Stacked | Stacked | Stacked | Stacked |
|
certified product | CE, UN38.3, MSDS, Shipping, Dangerous Package |
Cell certification | CE,UL,IEC 62109-1&-2, IEC 62477,EN61000,UN38.3 |
Solar Power Battery Storage System Description :
EA W400S is a high-voltage battery storage system based on
lithium-iron phosphate battery, which is one of the new energy
storage products developed and produced by EA Energy. It can be
used to support relable power for various types of equipment and
systems. It is especially suitable for those application scenes
which required high power output, limited installation space,
restricted load-bearing and long cycle life.
24 hours power storage , smart BMS home energy storage system ,
providing DC power services suitable
for all scenarios , special pefect for home , microgrid or
commercial school use .
48v 400Ah 20Kwh Wall-Mount LiFePO4 Battery with Roller is pack
designed as an Energy storage system ess battery module. It can be
used in series or in parallel. It is compatible with all
industry-leading standard solar charge controllers, inverters.
The system has a built-in BMS battery management system, which can
manage and monitor cell’s information including voltage, current
and temperature. What’s more, the BMS can help extend the cycle
life by balancing cells during charging and discharging.
ADS, CAN, RS485, RST, positive, negative and other interfaces are
shown in the figure.
48v LFP-based ESS, long life expectancy of 20 years.
Battery bank Expandable in parallel as power needs to increase.
Operates at 98% efficiency for more than 5000 times cycles.
Offer up to 100% depth of discharge.
Solar Power Battery Storage System Details :
Solar Power Battery Storage System Applications :
The battery storage system can be applicated with solar panels
,mountain communication base station ,communication base station
energy storage ,backup power , outdoor micro station , wind power
system etc...
