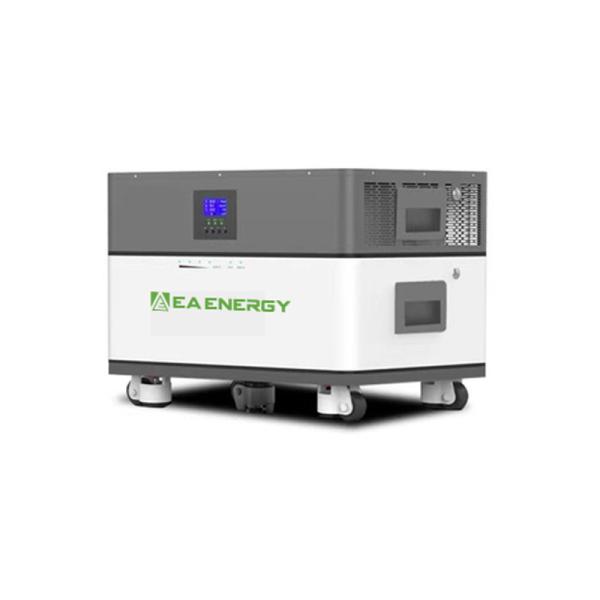

48V 100Ah Stacked Solar Battery Storage System Off Grid Home
Battery Storage System
Solar Battery Storage System details :
1. Diameter*Height : 603*430*600mm
2. Nominal Voltage : 48V
3. Nominal Capacity : 100Ah
4. Cycle life : 6000 cycles
5. Standard charging ways : CC / CV
6. With 3kw~5kw inverter
7. BMS inside ,CE , UL , UN38.3 , MSDS compliant
8. Warrenty: 5 Years
Solar Battery Storage System Specifications :
| Model Number | EA W10 |
| Battery parameters |
| Nominal Voltage | 48V |
| Rated Capacity | Typical 100Ah |
| Minimum 95Ah |
| Charging Voltage | 54.75V |
| Charging Mode | C.C / C.V. |
| Voltage at end of Discharge | 37.5V |
| Rated Charge Current | ≤60A |
| Maximum Continuous Charge Current | ≤80A |
| Internal Impedance | ＜100mΩ |
| Rated Discharge Current | ≤100A |
| Maximum Continuous Discharge Current | ≤100A |
| Overcharge Voltage | 3.65±0.05V (Adjustable) |
| Over Discharge Cut Off Voltage | 2.5±0.01V (Adjustable) |
| Over Current | Discharge overcurrent value: ≧105A |
| Short Circuit | Detection condition |
| Release condition |
| Operation Temperature Range | Charge: 0~55℃ |
| Discharge: -20~55℃ |
| Storage Temperature Range | Less than 7 day : -20~65℃ |
| Inverter parameters |
| Solar Input |
| Maximum PV Open-circuit Voltage | 145vdc |
| PV Working Voltage Range | 60-145Vdc |
| MPPT Voltage Range | 60-115Vdc |
| Maximum PV Input Current | 40A |
| Maximum PV Input Power | 3400w |
| Maximum PV Charging Current | 60A |
| AC Input (generator / grid) |
| Mains Maximum Charging Current | 60A |
| Rated Input Voltage | 220/230Vac |
| Input Voltage Range | (90Vac-140Vac)±2% |
| Frequency | 50Hz / 60Hz (Automatic Detection) |
| Mains Charging Efficiency | >95% |
| Switch Time (bypass and inverter) | 10ms (Typical Value) |
| Maximum Bypass Overload Current | 30A |
| AC Output |
| Output Voltage Waveform | Pure Sine Wave |
| Rated Output Voltage | 230Vac (200 / 208 / 220 / 240Vac) |
| Rated Output Power | 3000 (2600 / 2700 / 2850 / 3000VA) |
| Rated Output Power | 3000 (2600 / 2700 / 2850 / 3000W) |
| Peak Power | 6000VA |
| On-load Motor Capacity | 2HP |
| Output Frequency Range (Hz) | 50Hz 土 0.3Hz / 60Hz ± 0.3Hz |
| Maximum Efficiency | >92% |
| No-load Loss | Non Energy-saving Mode: ≤50W Energy-saving Mode:≤25W (Manual Setup) |
| General |
| Humidity Range | 5% to 95%(Conformal Coating Protection) |
| Dimensions | 603*430*600mm |
| Weight | about 90kg |
| Communication mode | Working voltage, working current, remaining capacity
|
Solar Battery Storage System Features:
EA ENERGY W10 5kWh Home Battery Storage System
Stackable Home Energy Storage System is a PLUG & PLAY system with a
flexible modular design with no extra cables, which is safe, long
life span and has good performance. They apply to all home storage
systems. Each set of systems contains 1 set 5KV inverter up to 5
battery modules in parallel connection and achieves usable capacity
between 5.12 to 25.6 kWh.
Multiple communications including ADS, CAN, RS485, RST, positive,
negative and other interfaces are shown in the figure.
Advanced BMS protection functionality which can manage and monitor
cell’s information including voltage, current and temperature.
What’s more, the BMS can help extend the cycle life by balancing
cells during charging and discharging.
Modular design Easy installation and compact, without extra cables
.Save installation time and labor. WiFi App Management Optional.
Longer Cycle Life:6000 Cycle Life @80%DOD.
Easy to move with wheels.Compact and portable design,indoor and
outdoor workable. Double input:Solar energy charging adn Utility
Grid charging.
Adopt high safety, long life, excellent performance LiFePO4 battery
OEM Supported with low MOQ
Flexible configuration, multiple battery modules can be stacked for
expanding output and Capacity.
Solar Battery Storage System Products Details :
Stacked Solar Battery Storage System Applications :
The battery storage system can be applicated with solar panels
,mountain communication base station ,communication base station
energy storage ,backup power , outdoor micro station , wind power
system etc...
