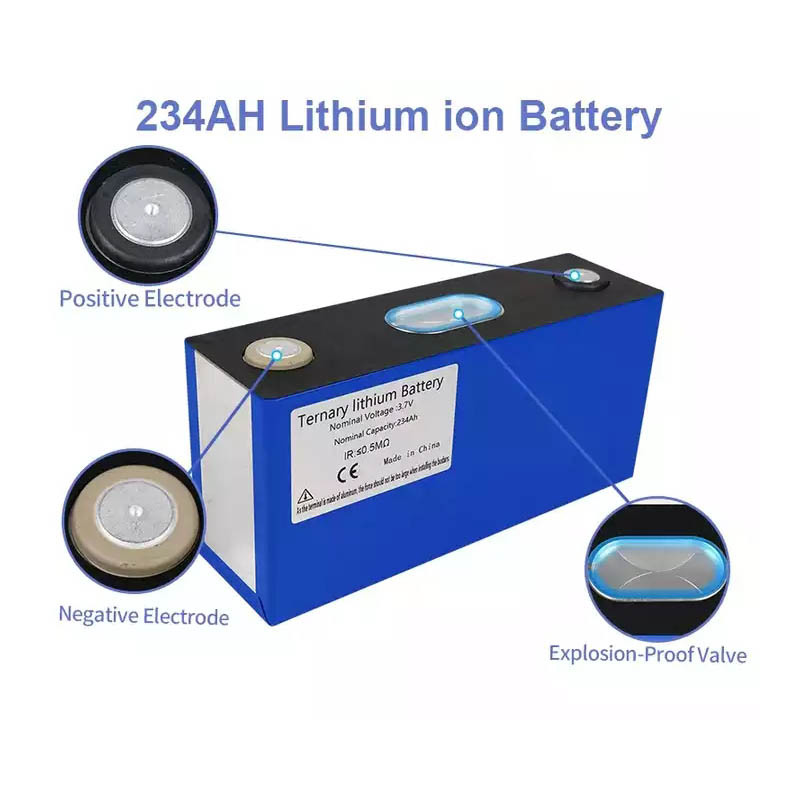

3.7V CATL 234Ah Lithium Ion Prismatic Battery Cells For Solar
Battery Pack
3.7V 234Ah CATL LiFePO4 Prismatic battery details:
1. Diameter*Height: 66.5*130*218mm
2. Nominal Voltage: 3.7V
3. Nominal Capacity: 865Wh
4. Cycle life: 5000 cycles
5. Standard charging ways: CC / CV
6. Li-ion / Lithium Ion rechargeable battery cells
7. CE , UL ,UN38.3 , MSDS compliant
3.7V 234Ah CATL Lithium Prismatic battery Specifications:
Model Name | 3.7V CATL 234Ah Lithium ion Battery for Solar Battery Pack |
General Specification | Nominal Capacity | 234Ah |
Nominal Voltage | 3.7V |
Charge Cut off Voltage | 4.2V |
Discharge Cut off Voltage | 2.8V |
AC Impedance Resistance | ≤0.5mΩ |
Max Charge Current | Max 1C |
Max Discharge Current | Max 3C |
Cycle Life | ≥1000 cycles |
Charging Temperature | 0℃~45℃ |
Discharing Temperature | -20~60 ℃ |
Demension and Weight | Dimension | 66.5*130*218±1.5mm |
New Weight | 3.47±0.15kg |
Application | Suitable for Solar&Wind Energy Storage
System,RV&Camper,Boats&Yacht,Golf Cart&EV,Electric
Forklift,Street Light etc |
3.7V 234Ah CATL Lithium Prismatic battery Description:
CATL 3.7V 234Ah LiFePO4 prismatic battery cells specially
customized with screws for easy connection, have long cycle life,
high energystorage and excellent low-temperature performance
Square aluminum shell structure, high-precision explosion-proof
valve design, good safety performance.
1. Low power dissipation High energy efficiency of the system;High
energy density: volume to energy density is 550Wh/L
Low internal resistance, high discharge rate, and stable discharge
platform.
Good cycling performance: It has low attenuation, and it can
maintain more than 80% of the initial capacity after 500 cycles.
2. Relatively light weight, high energy density;with one cell it is
possible to reach up to 300Ah, which is an important quality for
the creation of batteries with large capacities, such as in the
industrial market, avoiding cells in parallel, which significantly
increases the safety of the whole pack.
3. The structure is simple and the expansion capacity is relatively
convenient.It is an important option to improve the energy density
by increasing the monomer capacity.Another significant aspect is
the screw poles. This simplifies assembly and makes the replacement
of an element easier, even on-site.
4.The structure is simple and the expansion capacity is relatively
convenient.It is an important option to improve the energy density
by increasing the monomer capacity.Another significant aspect is
the screw poles. This simplifies assembly and makes the replacement
of an element easier, even on-site.
5. Highly automated production equipment to ensure battery
consistency.High reliability of square lithium battery package;The
case of prismatic cells is very durable, lending themselves very
well to the production of custom battery packs, avoiding
complicated studies and expensive tests on mechanical stress.
6. The battery is suitable for DIY lovers with experience.
Green environment, ISO14000 approval, products meet GB and UN
criteria, and ROHS compliant.
3.7V 234Ah CATL Lithium Prismatic battery Products Details :
3.7V 234Ah CATL Lithium Prismatic battery Applications:
CATL 234AH 3.7V Lithium ion NMC Battery Cells For RV, EV, DIY
Energy Storage, etc with 2000cycles at 1C long cycle life,
high-performance consistency, high safety performance.
