48V Golf Carts Battery 48V 160Ah LiFePO4 Battery Packs With BMS For
Golf Carts
Description of 48V 160Ah Golf Cart Battery:
This 48V 160Ah LiFePO4 Battery Packs battery is Specially developed
for golf carts . it is can Applicated for many kinds of Golf Carts
.
The Diameter is 800*361*232mm Nominal Voltage is 51.2V 8192wh
capacity , it is a long cycle life than lead acid battery , over
5000 cycles .All of our LiFePO4 batteries with CE , UL ,UN38.3 ,
MSDS certificate
Specification of 48V 56Ah 106Ah 160Ah Golf Cart Battery:
Model | EA4856 | EA48105 | EA48160 |
Cell | LiFePO4 Battery Cells | LiFePO4 Battery Cells | LiFePO4 Battery Cells |
Rated capacity(at 0.2C) | 56Ah | 105Ah | 160Ah |
Rated voltage | 51.2V | 51.2V | 51.2V |
Cycle Life | Over 5000cycles (@25°C, 0.2C, RT, 80% DOD) | Over 5000cycles (@25°C, 0.2C, RT, 80% DOD) | Over 5000cycles (@25°C, 0.2C, RT, 80% DOD) |
Charging method | 0.2C to 57.6V, then charge current to 0.02C (CC/CV) | 0.2C to 57.6V, then charge current to 0.02C (CC/CV) | 0.2C to 57.6V, then charge current to 0.02C (CC/CV) |
Recommended charge voltage | 58.4V | 58.4V | 58.4V |
Discharge cut-off voltage | 40V | 40V | 40V |
Standard charge current | 0.2C | 0.2C | 0.2C |
Max. charge current | 0.5C | 0.5C | 0.5C |
Continuous discharge current | 50A or customized | 100A or customized | 100A or customized |
Peak discharge current | 200A (10s) or customized | 200A (10s) or customized | 200A (10s) or customized |
Self-discharge | 25°C, monthly≤3% | 25°C, monthly≤3% | 25°C, monthly≤3% |
BMS | Built-in smart BMS | Built-in smart BMS | Built-in smart BMS |
Communication port | CANBus or customized | CANBus or customized | CANBus or customized |
IP Rating | IP67 or customized | IP67 or customized | IP67 or customized |
Temperature (Charge) | 0°C ~ 55°C | 0°C ~ 55°C | 0°C ~ 55°C |
Temperature (Discharge) | -20°C ~ +55°C | -20°C ~ +55°C | -20°C ~ +55°C |
Temperature (Storage) | 0°C ~ 35°C | 0°C ~ 35°C | 0°C ~ 35°C |
Battery dimension | 460*335*246mm or customized | 460*335*246mm or customized | 800*×361*232mm or customized |
Total weight(Approx.) | 33Kg or customized | 43.2Kg or customized | 72Kg or customized |
Warranty | 5years | 5years | 5years |
Design life | 10years | 10years | 10years |
SOC display | Optional | Optional | Optional |
Feature Of 48V 160Ah Golf Cart Battery:
1. Environmental Friendly and Longer Service Life : Our LiFePO4
battery provides 5000+ cycles, Over 10 Years Lifetime. The service
life of LiFePO4 batteries is 8 to 10 times than the standard
lead-acid batteries. 160Ah LiFePO4 battery can be recycled without
any producing harmful elements to the environment.
2. Built-In BMS Protection: This 48V 160Ah Lithium Battery has
Built-In BMS (Battery Management System) to maintain the voltage of
every cell and prevents over-charged, over-discharged,
over-current, short circuit, and over temp. All our batteries pass
UL Testing and have FCC, CE, PSE, IP65 certificates, and a 5-10
years warranty free you from battery security concerns.
3. Our golf cart 48V 40Ah batteries come with everything you need
to make replacing your batteries a breeze! High output and longer
run times. Give your golf cart a massive boost in speed and torque.
48V LiFePO4 Batteries are a direct replacement for many RV,
motorhome, and trolling motor batteries.
4. 160Ah 48V Battery can be connected in parallels for larger
capacity. Connection in parallels: Up to 4 identical batteries for
up to 400Ah. this new battery system Supply for Wide Application at
home energy storage system and RV & camper, Houseboat, Travel
Trailer, and more

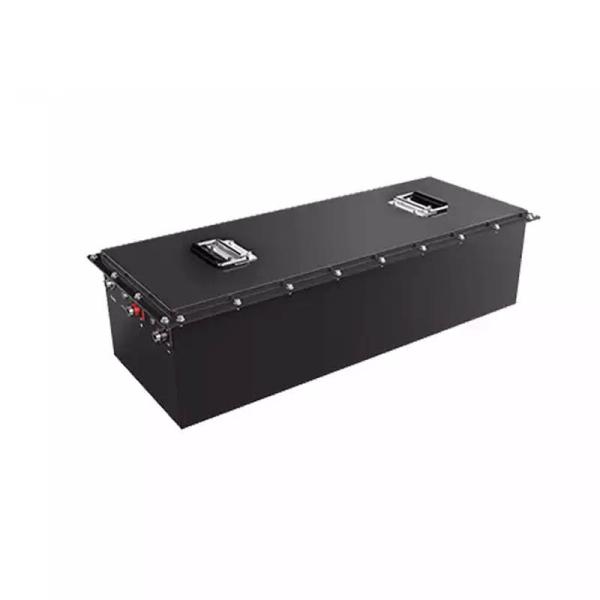

48V 160Ah Golf Cart Battery Details :
48V 160Ah Golf Cart Battery Applications:
48V 160Ah EA ENERGY Deep Cycle LiFePO4 battery has 5000-8000 cycles
and 10 years lifetime. Stable and excellent performance makes it
very suitable for UPS backup, lighting, digital/CCTV cameras,
portable TV, e-Robot, electric vehicles, DIY loud speaker, air
pump, fish finder, golf car, trolling motor, motorhome/RV & camper,
Houseboat, Travel Trailer, Dump Trailer and off-grid applications.
