3.5U Rack Mount 48V 100Ah Lithium LiFePO4 Battery Pack For Home
Solar System
Customization Lithium Ion Battery 48V 100Ah LiFePO4 for Solar
Energy Storage Systems , access network equipment, far-end
telephone exchange
48V 100Ah Lithium LiFePO4 Battery Pack details :
1. Diameter*Height : 480x222x442cm (Lithium prismatic LiFePO4 15S1P )
2. Nominal Voltage : 48V
3. Nominal Capacity : 150Ah
4. Cycle life : 5000 cycles
5. Standard charging ways : CC / CV
6. Li-ion / Lithium Ion rechargeable LiFePO4 battery cell
7. CE , UL ,UN38.3 , MSDS compliant
48V 100Ah Lithium LiFePO4 Battery Pack Description :
3.5U Rack – 100Ah customized Lithium-Ion Phosphate Battery lighter weight, safe
operation, high-temperature performance and long battery life can
satisfy the requirements of new and existing outdoor and indoor
telecom sites.
This battery pack can be easily expanded by adding expansion
battery packs in parallel connection.Support Connected in parallel
mode for expansion upto 14 units.
Lithium Battery Solar Energy Storage is new environmentally
friendly backup power system focused on home applications and
off-grid scenarios.The eco-friendly lithium-ion battery paired with
the highest-performance BMS .the battery pack built-in BMS monitors
its operation and prevents the battery from operating outside
design limitations.The leading technological advancements in
LIFePO4 Battery technology and the ability to design systems will
provide high performance and reliability and offer the most
efficient solution for your energy storage needs.

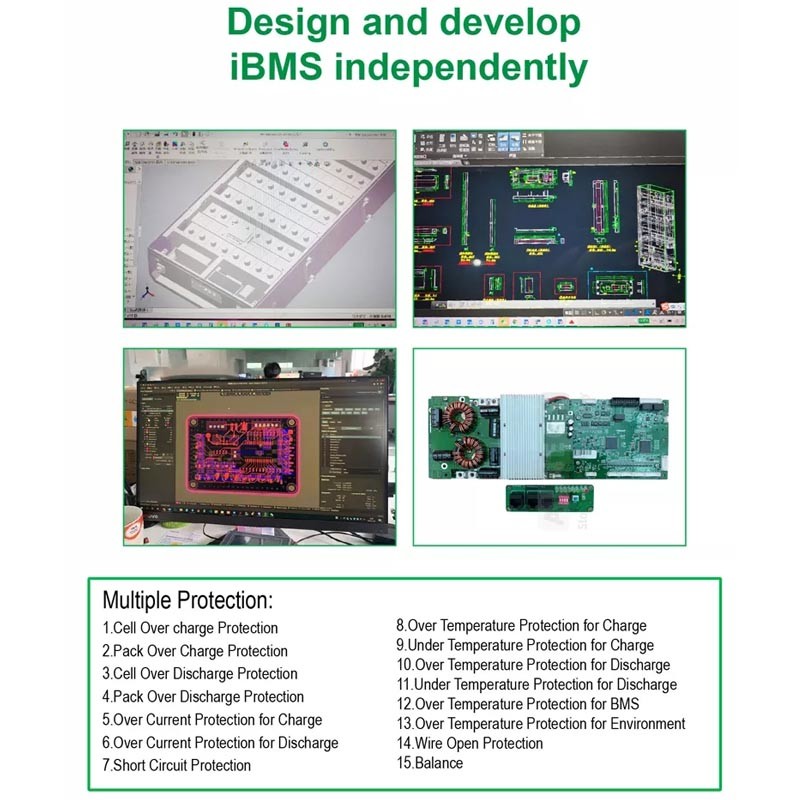

The battery system uses a high-performance battery management
system (BMS) which automatically manages and measures the battery’s
charging and discharging current, and manages the battery’s float
charge and boost charge. It has high charge currents (short charge
period). The battery system has good electromagnetic compatibility.
EA-48150 has been widely used in backup power of telecommunication
field such as access network equipment, far-end telephone exchange,
mobile telecommunication equipment, transmission facility,
satellite earth station and microwave communication equipment etc.
48V 100Ah Lithium LiFePO4 Battery Pack Specifications :
Electrical
Characteristics | Nominal Voltage | 51.2V |
Nominal Capacity | 100Ah@0.2C |
Energy | 5120Wh |
Internal Resistance | ≤35mΩ |
Cycle Life | 2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity |
Self Discharge | ≤3.5% per month at 25℃ |
Standard Charging | Max.Charging Voltage | 58.4±0.2 |
Charging Mode | At 0℃~45℃ temperature, charged to 58.4V at a constant current of
0.2C, and then,changed continuously with constant voltage of 58.4V
until the current was not more than 0.02C |
Charging Current | 100A |
Max.Charging Current | 100A |
Standard Discharging | Discharging Current | 100A |
Max. Continuous Current | 100A |
Max.Pulse Current | 110A(10S) Can be set up |
Discharging Cut-off Voltage | 40.0 |
Operating Condition | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity |
Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
Water Dust Resistance | IP54 |
Structure | Cell & Format | GSP34135214F (16S1P) |
Casing | Metal |
Max.Dimension (L*W*H) | 482*650*155mm(3.5U) |
Weight | Approx. 48Kg |
Communication Interface | RS485 (8P8C) |
Display | LCD |

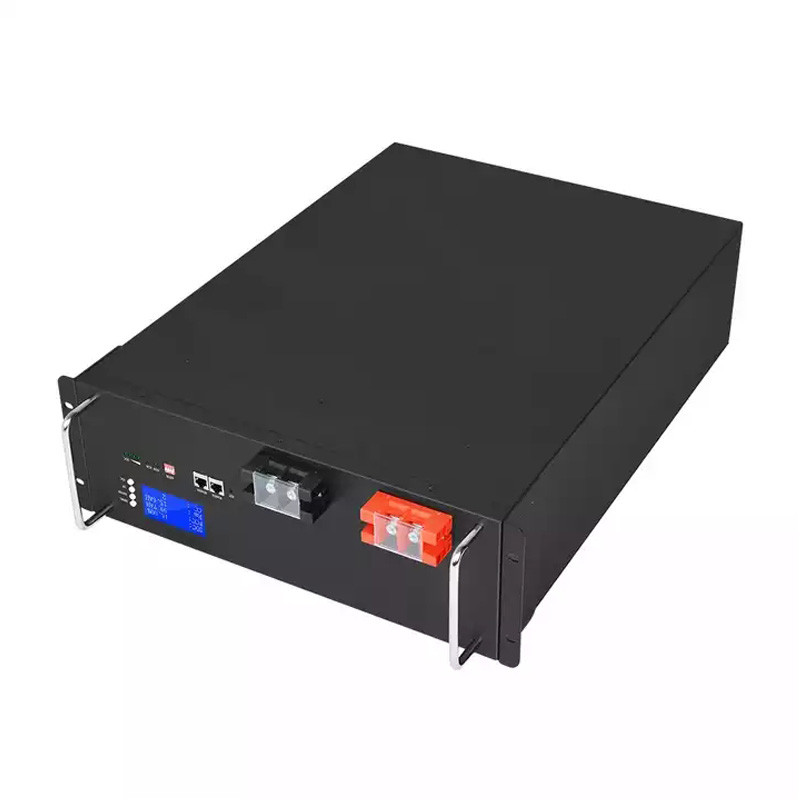

48V 100Ah Lithium LiFePO4 Battery Pack Products Details :

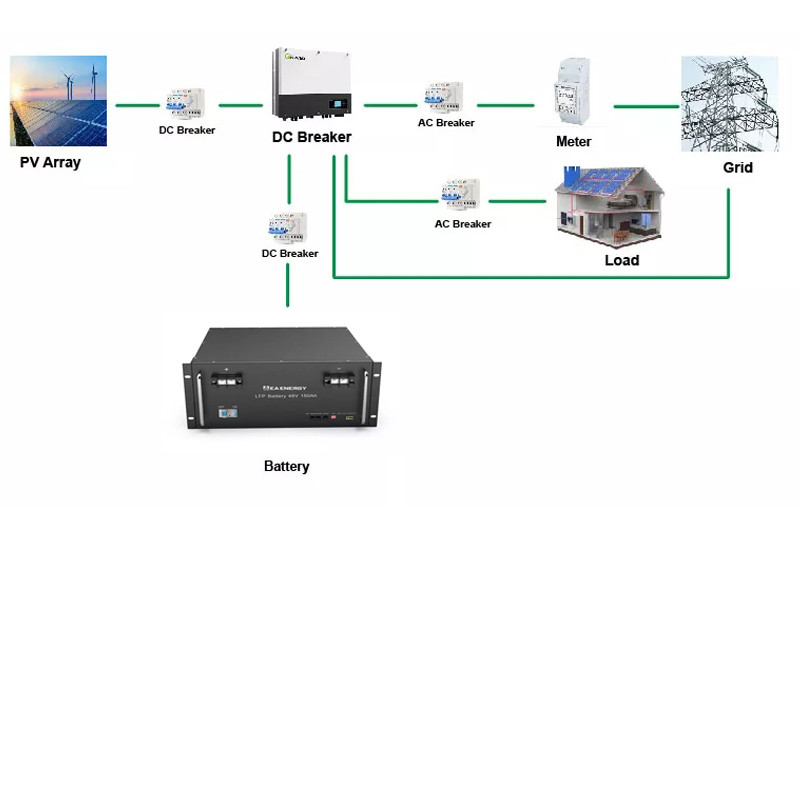

48V 100Ah Lithium LiFePO4 Battery Pack Applications :
EA-48100 has been widely used in backup power of telecommunication
field such as access network equipment, far-end telephone exchange,
mobile telecommunication equipment, transmission facility,
satellite earth station and microwave communication equipment etc.
