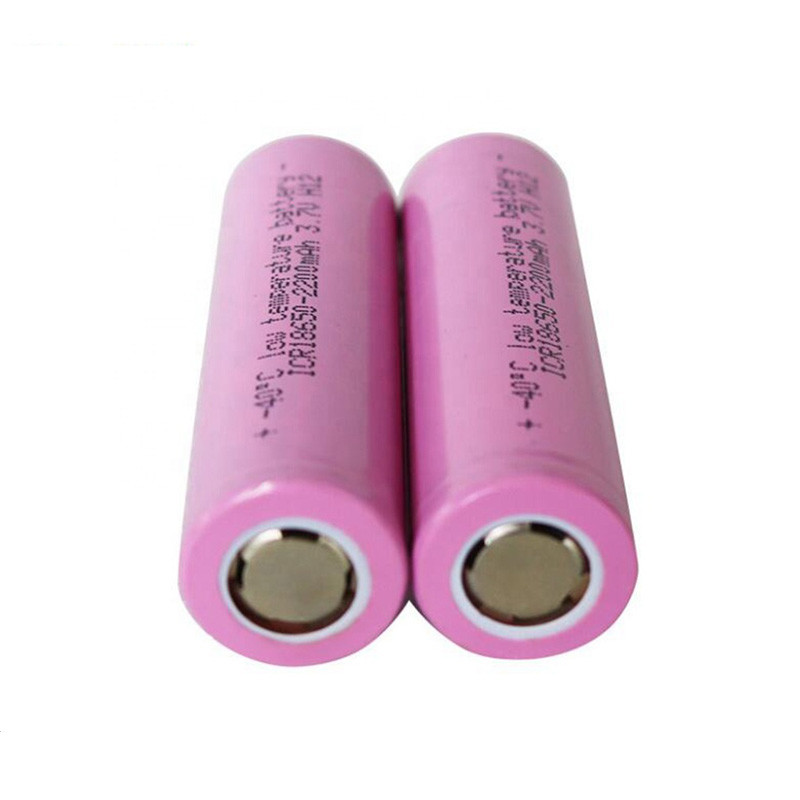

Low Temperature ICR 18650 Cylindrical Cell For Electrical Ice
Augers
Low Temperature Batteies ICR18650 2200mAh 3.7V Lithium Ion 18650
Cells For Electrical Ice Augers
18650 Cylindrical Cell details:
1. Diameter*Height : 18*18*65mm (Lithium Ion 18650 size )
2. Nominal Voltage : 3.7V
3. Nominal Capacity : 2200 mAh 0.2C
4. Cycle life : 1500 cycles
5. Standard charging ways : CC / CV
6. Li-ion / Lithium Ion rechargeable battery cell
7. CE , UL ,UN38.3 , MSDS compliant
Low Temperature Batteies Description:
This is low temperature 18650 battery , High Capacity 3.7v lithium
rechargeable batteries Large Nominal Capacity of 2600mAh.
They have been tested to specs .
EA Energy Lithium batteries can be made to operate in environments
with low-temperatures of -50℃ to 50℃.
They are able to discharge over 60% efficiency at 0.2C at -40℃ and
discharge over 80% efficiency at 0.2C at -30℃. When charged at 20℃
to 30℃ by 0.2C, the capacity can maintain above 85% after 300
cycles. The batteries can be ready for mass production, and they
have been widely used in cold climates and military products.
Under low-temperatures, the batteries can achieve a lower internal
resistance and, thus, a high discharge rate. Compared with
traditional Lithium Polymer batteries, Grepow's batteries have
broken through the discharge temperature limits of -20℃ to 60℃.
EA Energy's low-temperature LiFePO4 batteries ensure a great
low-temperature discharge performance through the addition of
functional materials into the electrolytes, as well as excellent
technology that we have developed for a long time.
EA Energy produces high-performance, low-temperature batteries for
military equipment, deep diving equipment, public security, medical
electronics, the aerospace industry, scientific investigations into
polar regions, electrical-power telecommunication, AGVs, RVs,
electrical ice augers, and many more. Our R&D department works
closely with clients to provide the best solution for their
products.
High-quality Materials: Rechargeable Li-ion Batteries are mercury
cadmium and lead free, The positive terminal is made of plated
manganese steel with minimal resistance and high conduction for
fast heat dissipation, the negative terminal is reinforced with
more protection, safe for home and better for environment.
Multiple Protections: The product provides 6 protections, such as
temperature protection, short circuit protection, overcharge
protection and overcurrent protection to stabilize the battery.
High performance and high reliability, durable replacement for the
old or damaged one. Store in a fresh and dry place.
Safety: Reverse polarity protection, Overload protection, Over
current protection, Over voltage protection, Short circuit
protection, Over temperature protection to prevent damage to
battery and equipment.
The Lithium cell is UL listed, the Batteries are RoHS, FCC, and CE
listed.
Low Temperature Batteies Specifications:
| NO | Items | Specification | Remarks |
| 1 | Nominal Capacity | 2200mAh | 0.5C Discharge |
| 0.5C Discharge |
| 2 | Nominal Voltage/shipping voltage | 3.7V | Voltage |
| 3 | Discharge Cut-off Voltage | 2V | 0.2C Discharge |
| 0.2C Discharge |
| 4 | Charge Limited Voltage | 5V | 0℃～45℃ |
| 5 | Standard Charge Current | 0.5 C5A | 0℃～45℃ |
| 6 | Standard Discharge Current | 0.2 C5A | -50℃~ +60℃ |
| 7 | Rapid Charge Current | 0.5 C5A | 10℃～45℃ |
| 8 | Rapid Discharge Current | 0.2 C5A | -50℃~ +50℃ |
| 9 | Max. Charge Current | 3 C5A | |
| Max Pulse Current | 3 C | |
| 10 | Internal Impedance | ≤45mΩ | AC 1kHz condition |
| At AC 1kHz |
| 11 | Weight | About 50g | Weight 50±2g |
|
| 12 | Storage Temperature Range | ≤1 month | -50℃~ 45℃ | Factory Voltage 3.7~4.2V |
| ≤3 months | -30℃~ +30℃ | Ex-factory Voltage3.7~4.2V |
| ≤12 months | -20℃±5℃ | |
Low Temperature Batteies Details :
Low Temperature Batteies Applications:
ow-temperature batteries for military equipment, deep diving
equipment, public security, medical electronics, the aerospace
industry, scientific investigations into polar regions,
electrical-power telecommunication, AGVs, RVs, electrical ice
augers, and many more.
