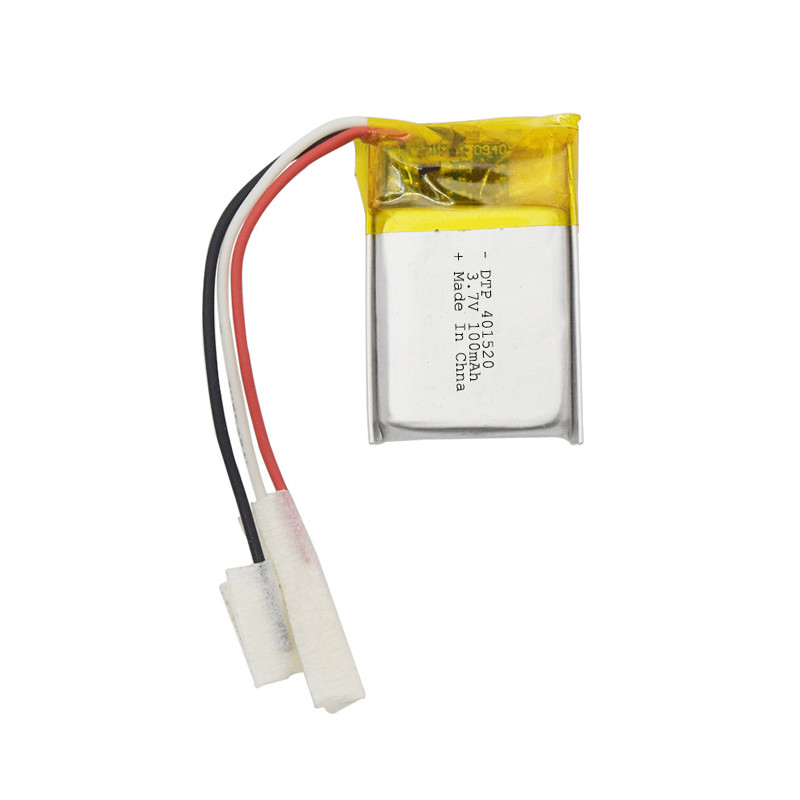

3.7v 401520 100mAh Lithium Ion Polymer Battery Pack No Memory
Effect
3.7V 100mAh 401520 Lipo Battery Rechargeable Lithium Polymer ion
Battery Pack
Rechargeable Lipo Battery Quick details:
1. Diameter*Height : 15mm x 20mm x 4mm (Lithium Ion polymer 401520
size)
2. Nominal Voltage : 3.7V
3. Nominal Capacity : 100mAh
4. Cycle life : 1000 cycles
5. Standard charging ways : CC / CV
6. Li-ion / Lithium Ion Polymer rechargeable battery cell 401520
7. CE , UL , UN38.3 , MSDS compliant
Rechargeable Lithium Polymer Battery Pack Description:
401520 rechargeable lithium ion polymer battery, nominal voltage
3.7V, full charge voltage 4.2V, capacity 100mAh, size (15×20×4mm)
(L*W*T), Weight: 0.66oz (15g), Maximum current: 1A. It can prevent
overcharge, overdischarge, overcurrent, and short circuit.
A compelling advantage of rechargeable lithium polymer batteries is
that manufacturers can shape the shape of the battery almost as
they wish, which is important for handset manufacturers to continue
to develop smaller, thinner, lighter phones.
1. Nominal Voltage 3.7V, Rated Capacity 100mAh.
2. High energy density
3. High working voltage for single battery cells
4. Pollution-free
5. Long cycle life
6. No memory effect
7. Capacity, resistance, Voltage, platform time consistency is good
8. With short-circuit production function, safe and reliable
9. Good consistency, low self discharge
10. Light weight, small and customized size
11. Wide application for electronics and industry
This battery is really the latest state of the art technology in
rechargeable. It is extremely thin, light weight and super thin
compared to any rechargeable chemistry.Low weight, small size but
huge capacity.The other advantage of the Lithium Polymer technology
is the very low self discharge .
Features:
Rechargeable high volume Lithium-ion Battery
High capability,Lightweight,Low internal resistance
Excellent safety performance,Excellent discharge performance
Long cycle time;Can be used in MP3 MP4 GPS PSP PAD and a variety of
electronic readers
LiPo cells provide manufacturers with compelling advantages. They
can easily produce batteries of almost any desired shape. For
example, the space and weight requirements of mobile devices and
notebook computers can be met. They also have a low self-discharge
rate, which is about 5% per month.
Safety - Over charge protection, Short circuit protection. When the
battery voltage is too high, the charger will stop. It will protect
batteries from the damage and the lifetime of batteries will be
longer.
Rechargeable Lipo Battery Specifications:
| No | items | Specification |
| 1 | Mode | 401520 |
| 2 | Nominal capacity | 100mAh |
| 3 | Nominal voltage | 3.7V |
| 4 | Delivery voltage | 3.7-4.2V |
| 5 | charge voltage | 3.7V |
| 6 | Standard charging method | 0.5C constant current, 3.7V constant voltage
charge to 3.7V, continue charging till current
decline to ≤0.01C |
| 7 | Charge current | 0.2C 0.3A Standard charge, charge time: 5h(Ref)
1C 2A Rapid Charge, charge time:1h(Ref) |
| 8 | Standard discharging method | 0.5C constant current discharge to 3.7V |
| 9 | Cell Internal Impedance | ≤60mΩ |
| 10 | Maximum cont charge current | 0.5C For continuous charging mod |
| 11 | Max cont discharge current | 0.5C Peak instant discharge current 1C
|
Rechargeable Lipo Battery Products Details :
Rechargeable Lipo Battery Applications:
Lithium polymer battery in consumer
Electrical Teethbrush, MP4, Mobile Phone, MID,baby monitor, small
flying helicopters, backup power, Portable DVD, POS machine, Desk
vidio, E-BIKE, motor, drill and Digital camera.
