2.9Wh Cylindrical LiPo Battery 18350 17350 16350 For E Cigarette
Cylindrical LiPo Battery 18350 17350 16350 800mAh 2.9Wh For E
Cigarette
Quick details:
1. Diameter*Height : 16*35mm (Lithium Ion polymer 17350 size)
2. Nominal Voltage : 3.7V
3. Nominal Capacity : 800mAh
4. Cycle life : 600 cycles
5. Standard charging ways : CC / CV
6. Li-ion / Lithium Ion polymer rechargeable battery
7. CE , UL , UN38.3 , MSDS compliant
Description:
The LPC18350 3.7V 800mAh 2.9Wh is one of our popular cylindrical
rechargeable LiPo batteries, Our MOQ is only 5 pieces, friendly to
the small company.
Diameter 5mm to 25mm, Length 15mm to 80mm, Rich Inventory, Get
Price Lists Today!

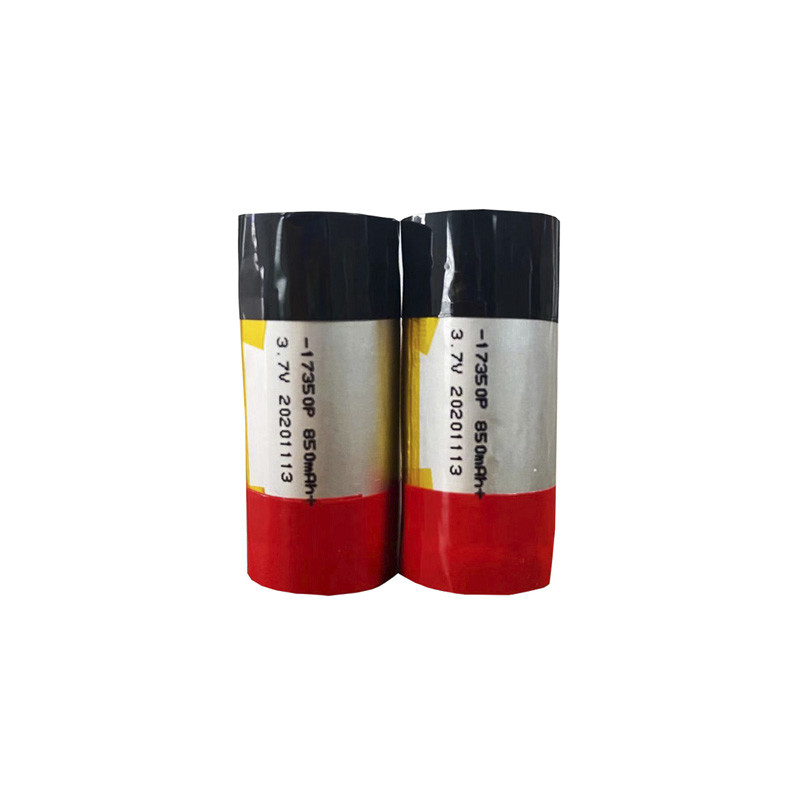

This Cylindrical LiPo Battery LPC18350 17350 16350 3.7V 800mAh
2.9Wh size is 18 or 17 or 16.0mm(diameter) x 35mm(length), it
without a protection circuit module, with wires 35mm.
The MOQ is 5 pieces with a lead-time of one week to ship . The
lead-time is 2 weeks for MOQ 5K of new production LiPo Batteries.
Also, we provide customized services, you can custom your own
rechargeable LiPo Battery in any shape and size.
You can replace the e-cigarette battery yourself easily.
It is fit most e-cigarette products on the market
The LPC16350 17350 18350 3.7V 800mAh 2.9Wh is a cylindrical LiPo
battery, which uses a polymer electrolyte.
Specifications:
| No | items | Specification |
| 1 | Mode | 18350 |
| 2 | Nominal capacity | 800mAh |
| 3 | Nominal voltage | 3.7V |
| 4 | Delivery voltage | 3.8-4.0V |
| 5 | charge voltage | 4.2+/-0.03V |
| 6 | Standard charging method | 0.2C constant current,4.2V constant voltage
charge to 4.2V,continue charging till current
decline to ≤0.01C |
| 7 | Charge current | 0.2C 400mA Standard charge, charge time:6.5h(Ref)
0.5C1000mA Rapid Charge, charge time:3h(Ref) |
| 8 | Standard discharging method | 0.2C constant current discharge to 3.0V |
| 9 | Cell Internal Impedance | ≤30mΩ |
| 10 | Maximum cont charge current | 0.5C For continuous charging mod |
| 11 | Max cont discharge current | 0.5C Peak instant discharge current 1C
|
Products Details :
Applications:
As we all know, this new type of battery now main uses in wearable
devices, medical devices, radio-controlled equipment, personal
electronics, and electric vehicles.
especially some products with special shape
It can changed with any size for the space . high plasticity ,Wide
range of applications
