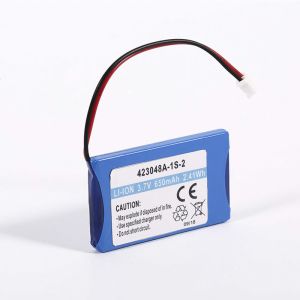

3.7V 650mAH 423048 Rechargeable Lipo Battery Constant Current 1C
3.7V 650mAH (Lithium Ion Polymer) Lipo Rechargeable Battery Model
423048
Quick details:
1. Diameter*Height : 48mm x 30mm x 4.2mm (Lithium Ion polymer
103450 size)
2. Nominal Voltage : 3.7V
3. Nominal Capacity : 650mAh
4. Cycle life : 500 cycles
5. Standard charging ways : CC / CV
6. Li-ion / Lithium Ion Polymer rechargeable battery cell 423048
7. CE , UL , UN38.3 , MSDS compliant
Description:
The LPC423048 3.7V 650mAh is one of our popular rechargeable LiPo
batteries, Our MOQ is only 5 pieces, friendly to the small company.
Discharge cut-off voltage: 2.75V
Maximum discharge current: 1C
Rechargeable times: >500Composition: Lithium polymer
3.7V 1000mAH (Lithium Polymer) Lipo Rechargeable Battery also known
as Lipo or Lipoly batteries are thin, light and powerful.
This battery has a capacity of 650mAh. These Batteries are widely
used in GPS, DVD, ipod, Tablet PC, MP4 Player, Power Bank, Mobile
Backup Power Supply, Bluetooth Speaker, IOT and other DIY and
Industrial applications.
Our rechargeable LiPo Battery without a protection circuit
module(PCM), with two standard 35mm wires.
Specifications:
| No | items | Specification |
| 1 | Mode | 423048 |
| 2 | Nominal capacity | 650mAh |
| 3 | Nominal voltage | 3.7V |
| 4 | Delivery voltage | 3.8-4.0V |
| 5 | charge voltage | 4.2+/-0.03V |
| 6 | Standard charging method | 0.5C constant current,4.2V constant voltage
charge to 4.2V,continue charging till current
decline to ≤0.01C |
| 7 | Charge current | 0.2C 400mA Standard charge, charge time:6.5h(Ref)
0.5C1000mA Rapid Charge, charge time:3h(Ref) |
| 8 | Standard discharging method | 0.5C constant current discharge to 3.0V |
| 9 | Cell Internal Impedance | ≤150mΩ |
| 10 | Maximum cont charge current | 0.5C For continuous charging mod |
| 11 | Max cont discharge current | 0.5C Peak instant discharge current 1C
|
Products Details :
Applications:
Use for: GPS DVD Tablet PC Power Bank Mobile Backup Power Supply
Bluetooth Speaker
Digital Bluetooth Headphone Camera MP3 MP4 MID PAD PDA Powebank etc
.
