12.8Wh 3.2V Lithium LiFePO4 Batteries 25000 Cycles For Golf Carts
4000mAh 12.8Wh Rechargeable Battery Cells 3.2V Lithium LiFePO4
Batteries For Golf Carts
Quick details:
1. Diameter*Height: 26*65mm (LiFePO4 26650 size)
2. Nominal Voltage: 3.2V
3. Nominal Capacity: 3600 mAh 10.6Wh

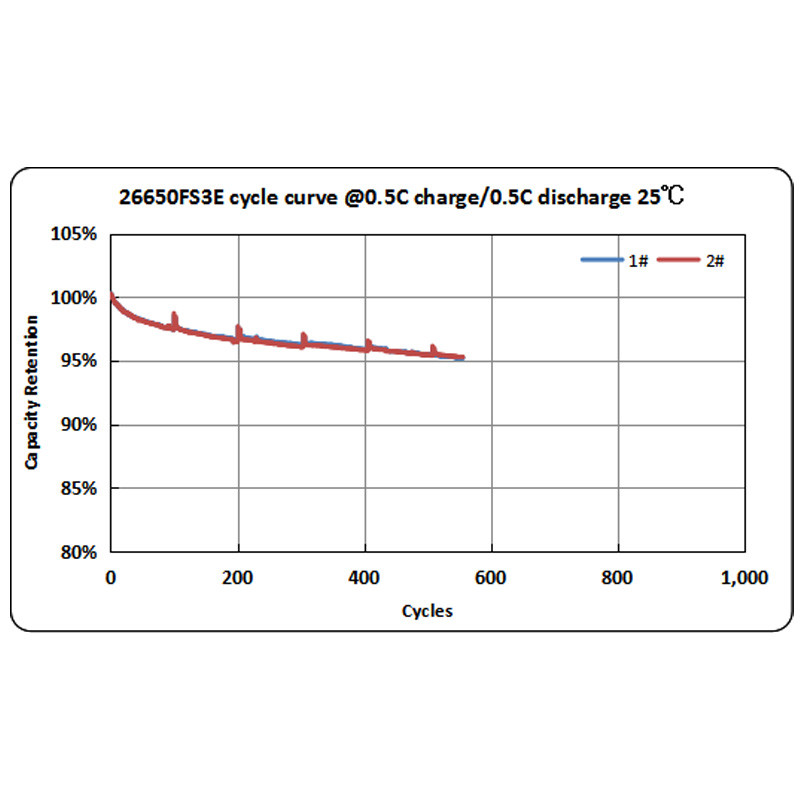

4. Cycle life: 2500 cycles
5. Standard charging ways: CC / CV
6. Li-ion / Lithium Ion rechargeable battery cell
7. CE , UL ,UN38.3 , MSDS compliant
Description:
LiFePO4 (Lithium Iron Phosphate, LFP) batteries are a version of a
lithium-ion battery with a cell voltage of 3.2V.
EA Energy has 14 years of experience in lithium battery production!
Super safe lithium iron phosphate(LiFePO4 )chemistry
High discharge rate Fast charging and low self-discharge rate Light
weight
Power cells for high-rate applications and energy cells for cyclic
applications
Construct custom battery designs by connecting two or more cells in
parallel and / or series
Specifications:
| NO | Items | Specification | Remarks |
| 1 | Nominal Capacity | 4000mAh | 0.2C 5A Discharge |
| 0.2C 5A Discharge |
| 2 | Nominal Voltage/shipping voltage | 3.2V/3.15-3.25V | Voltage |
| 3 | Discharge Cut-off Voltage | 2.0V | 0.2C 5A Discharge |
| 0.2C 5A Discharge |
| 4 | Charge Limited Voltage | 3.65±0.03V | 0℃～45℃ |
| 5 | Standard Charge Current | 0.2C 5A | 0℃～45℃ |
| 6 | Standard Discharge Current | 0.2C 5A | -20℃~ +60℃ |
| 7 | Rapid Charge Current | 0.5C 5A | 10℃～45℃ |
| 8 | Rapid Discharge Current | 0.5C 5A | -20℃~ +60℃ |
| 9 | Max. Charge Current | 1C 5A | |
| Max Pulse Current | 3C | |
| 10 | Internal Impedance | ≤16mΩ | AC 1kHz condition |
| At AC 1kHz |
| 11 | Weight | About 93.0g | Weight 93±2g |
|
| 12 | Storage Temperature Range | ≤1 month | -20~ 45℃ | Factory Voltage 3.3~3.45V |
| ≤3 months | 0℃~ +30℃ | Ex-factory Voltage3.3~3.45V |
| ≤12 months | 20±5℃ | |
Products Details :
Applications:
LiFePo4 battery cells are known for longevity (about 2,000 -5,000
charge and discharge cycles) and are suitable for
applications where long service life is required, such as in electric vehicle, electric bikes, scooters, boats,
submarines, golf carts, communications, energy storage, Intelligent
network, UPS systems, etc.
