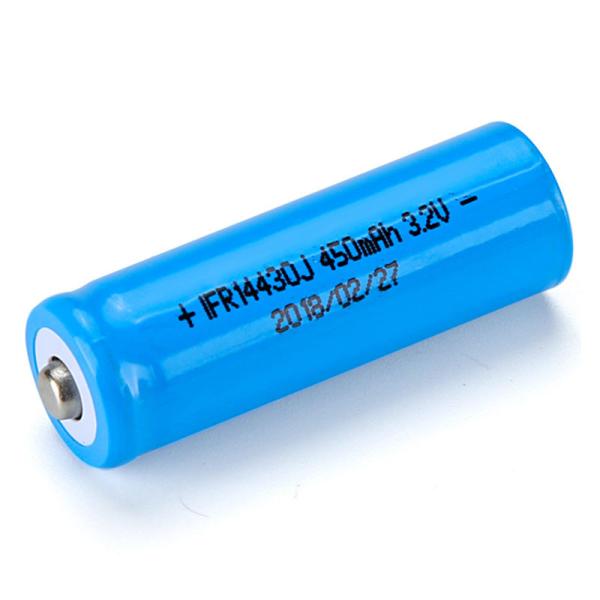

3.2v 450mAh 14430 LiFePO4 Battery Cells Rechargeable Lithium
Battery
3.2v 450mAh LiFePO4 Battery Cells 14430 Rechargeable Phosphate
Battery cell
Quick details:
1. Diameter*Height : 14 * 43mm (LiFePO4 14430 size)
2. Nominal Voltage : 3.2V
3. Nominal Capacity : 450 mAh 1.44
4. Cycle life : 2000 cycles
5. Standard charging ways : CC / CV
6. Li-ion / Lithium Ion LiFePO4 battery cell
7. CE , UL , UN38.3 , MSDS compliant
3.2v LiFePO4 Cell Description:
EA Energy-3.2V-450mAh-LFP Battery is a lithium battery cell
developed independently for energy storage/ electric vehicle market
, which has the characteristics of multifunction, low power
consumption, high reliability and high cost performance.
EA Energy LiFePO4 battery use Automotive Grade LiFePO4 Cells with
higher energy density, more stable performance and greater power.
Highest-level safety based on UL Testing Certificate for the cell
inside.
100% safe, nontoxic, renewable energy. LiFepo4 battery will not
burn when overcharged, over discharged, over current or short
circuit, and can withstand high temperatures without decomposition.
Smart BMS inside can handle cell balancing, low & high voltage
cutoff, short circuit protection and temperature protection.
Without memory effect, no matter what state the battery is, it can
be used as soon as it is charged
Specifications:
| NO | Items | Specification | Remarks |
| 1 | Nominal Capacity | 450mAh | 0.2C Discharge |
| 0.2C Discharge |
| 2 | Nominal Voltage/shipping voltage | 3.2V/3.15-3.25V | Voltage |
| 3 | Discharge Cut-off Voltage | 2.0V | 0.2C Discharge |
| 0.2C Discharge |
| 4 | Charge Limited Voltage | 3.65±0.03V | 0℃～45℃ |
| 5 | Standard Charge Current | 0.2C | 0℃～45℃ |
| 6 | Standard Discharge Current | 0.2C | -20℃~ +60℃ |
| 7 | Rapid Charge Current | 0.5C | 10℃～45℃ |
| 8 | Rapid Discharge Current | 0.5C | -20℃~ +60℃ |
| 9 | Max. Charge Current | 1C 450mAh | |
| Max Pulse Current | 3C | |
| 10 | Internal Impedance | ≤15mΩ | AC 1kHz condition |
| At AC 1kHz |
| 11 | Weight | About 15.0g | Weight 15±2g |
|
| 12 | Storage Temperature Range | ≤1 month | -20~ 45℃ | Factory Voltage 3.3~3.45V |
| ≤3 months | 0℃~ +30℃ | Ex-factory Voltage3.3~3.45V |
| ≤12 months | 20±5℃ | |
Products Details :
Other LiFePO4 battery cells :
Applications:
LiFePO4 battery use Automotive Grade LiFePO4 Cells with higher
energy density, more stable performance and greater power. Like
used for Powerbank , solar campers , solar streetlight , motor
homes , E-bike , off-grid applications and so on
