3.2v 6Ah Cylindrical Lifepo4 Cells For Golf Cart Electric
Wheelchair

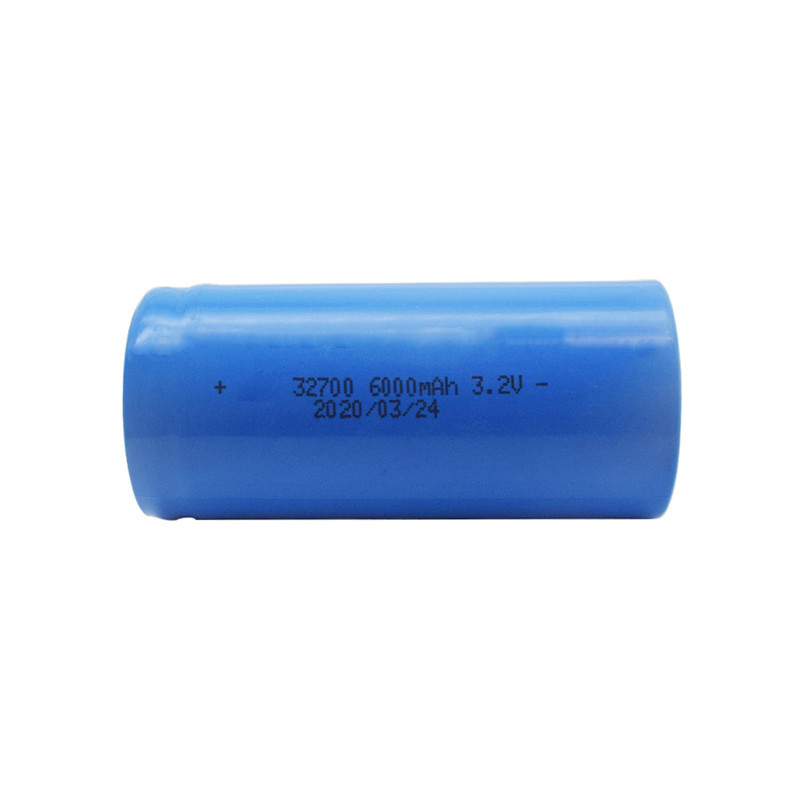

3.2v 6Ah 32700 Cylindrical LiFePO4 Rechargeable Battery Cells For
E-Bike Golf Cart Electric Wheelchair
LiFePO4 Battery Cell Quick details:
1. Diameter*Height : 32*70mm (LiFePO4 32700 size)
2. Nominal Voltage : 3.2V
3. Nominal Capacity : 6Ah 19.2Wh
4. Cycle life : 5000 cycles
5. Standard charging ways : CC / CV
6. Li-ion / Lithium Ion LiFePO4 battery cell
7. CE , UL , UN38.3 , MSDS compliant
Cylindrical LiFePO4 Rechargeable Battery Cells Description:
EA Energy has 14 years of experience in lithium battery production!
EA Energy LiFePO4 battery use Automotive Grade LiFePO4 Cells with
higher energy density, more stable performance and greater power.
LiFePO4 battery provides 2500 - 7000 cycles and a 10 year lifetime
cycle use compared to 200 - 1000 cycles & a 3 years lifetime in
typical Lead Acid batteries. Our lithium batteries can be fully
charged without risk and maintain the capacity with low
self-discharge rate, you can use the battery as you want even
though put it aside for a long-time storage.
ISO 9001, UL, and ROHS Certifications for every battery.
The battery uses imported original big brand ion batteries, with a
small internal resistance, big capacity, cycle times and more, no
memory effect, etc; internal circuit for multiple protection
design, can prevent over charge, over discharge, over current;
production process quality inspection and monitoring the use of
computers to ensure superior battery performance.
We can also customize any size and function you need.Such as
12V/24V/36v/48v/60V/72v 20AH, 50AH,100h, 120ah, 150ah,200ah, 300ah,
400ah, 800ah etc..
Great for building DIY batteries! The screw/stud posts allow for an
easy, quality build with no soldering. These cells are great for
DIY robotics, ham radio, power wall, ebikes, and many other
applications.
Cylindrical LiFePO4 Rechargeable Battery Cells Specifications :
| NO | Items | Specification | Remarks |
| 1 | Nominal Capacity | 6Ah | 0.2C 5A Discharge |
| 0.2C 5A Discharge |
| 2 | Nominal Voltage/shipping voltage | 3.2V/3.15-3.25V | Voltage |
| 3 | Discharge Cut-off Voltage | 2.0V | 0.2C 5A Discharge |
| 0.2C 5A Discharge |
| 4 | Charge Limited Voltage | 3.65±0.03V | 0℃～45℃ |
| 5 | Standard Charge Current | 0.2C 5A | 0℃～45℃ |
| 6 | Standard Discharge Current | 0.2C 5A | -20℃~ +60℃ |
| 7 | Rapid Charge Current | 0.5C 5A | 10℃～45℃ |
| 8 | Rapid Discharge Current | 0.5C 5A | -20℃~ +60℃ |
| 9 | Max. Charge Current | 1C 5A | |
| Max Pulse Current | 3C | |
| 10 | Internal Impedance | ≤15mΩ | AC 1kHz condition |
| At AC 1kHz |
| 11 | Weight | About 90.0g | Weight 90±2g |
|
| 12 | Storage Temperature Range | ≤1 month | -20~ 45℃ | Factory Voltage 3.3~3.45V |
| ≤3 months | 0℃~ +30℃ | Ex-factory Voltage3.3~3.45V |
| ≤12 months | 20±5℃ | |
Cylindrical LiFePO4 Rechargeable Battery Cells 26650 cells :
Part No |
Nominal Voltage |
Rated Capacity |
Internal Resistance |
Discharge Rate | Dimension(mm) |
Weight(g) |
| Diameter | Height |
| EA-LFP26650-3.2V-2500mAh | 3.2V | 2500mAh | <10 m Ω | 20C | 26.3±0.1 | 65.2±0.2 | 87 |
| EA-LFP26650-3.2V-3000mAh | 3.2V | 3000mAh | <10 m Ω | 10C | 26.3±0.1 | 65.2±0.2 | 85 |
| EA-LFP26650-3.2V-3200mAh | 3.2V | 3200mAh | <25 m Ω | 3C | 26.3±0.1 | 65.2±0.2 | 85 |
| EA-LFP26650-3.2V-3300mAh | 3.2V | 3300mAh | <25 m Ω | 3C | 26.3±0.1 | 65.2±0.2 | 85 |
| EA-LFP26650-3.2V-3400mAh | 3.2V | 3400mAh | <25 m Ω | 3C | 26.3±0.1 | 65.2±0.2 | 85 |
| EA-LFP26650-3.2V-3600mAh | 3.2V | 3600mAh | <25 m Ω | 3C | 26.3±0.1 | 65.2±0.2 | 85 |
| EA-LFP26650-3.2V-3800mAh | 3.2V | 3800mAh | <25 m Ω | 3C | 26.3±0.1 | 65.2±0.2 | 87 |
| EA-LFP26650-3.2V-4000mAh | 3.2V | 4000mAh | <25 m Ω | 3C | 26.3±0.1 | 65.2±0.2 | 88 |
Cylindrical LiFePO4 Rechargeable Battery Cells Details:
Cylindrical LiFePO4 Rechargeable Battery Cells Applications:
Perfect for Wireless camera, surveillance cameras, wireless infrared detector,
car LCD TV, portable DVD, personal treatment system, PDA personal
data assistant, personal communications systems, walkie-talkies,
digital cameras, camcorders, video cameras, Bluetooth devices, CD
players, MD players, MP3 players, smart cards, aviation model LED
lights and other fields can be used with LiFePO4 batteries.
