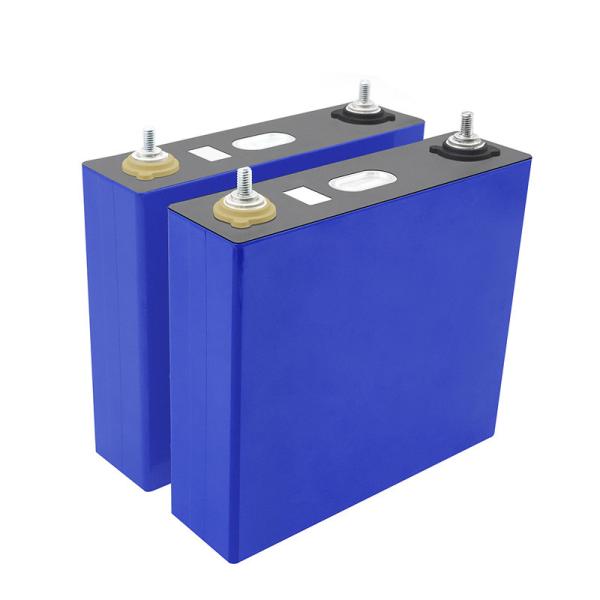

3.2V 135Ah Lifepo4 Prismatic Battery Cells For EV Outdoor Camping
3.2V 135Ah Rechargeable LiFePO4 Battery LiFePO4 Prismatic Cells For
Motors, RVs, Outdoor Camping
LiFePO4 Prismatic Cells details:
1. Diameter*Height : H174mm*W48mm*T155mm
2. Nominal Voltage : 3.2V
3. Nominal Capacity : 135Ah
4. Cycle life : 5000 cycles
5. Standard charging ways : CC / CV
6. Li-ion / Lithium Ion rechargeable LiFePO4 prismatic battery
cells
7. CE , UL , UN38.3 , MSDS compliant
LiFePO4 Prismatic Cells Description:
Advantages: Square lithium battery encapsulation has good
reliability, nice energy efficiency of the system, relatively light
weight and high energy density. Its structure is relatively simple
and capacity expansion is relatively convenient, which is an
important option to improve the energy density by increasing the
capacity of single cell. With large cell capacity, the system
structure is simple, which makes it possible to monitor cell one by
one. Another benefit of simplicity is stability.
100% Protection: Ampere Time LiFePO4 battery set you free from
battery security issue. It equipped with battery management system
(BMS), which protects the battery pack from over charging &
discharging, over current, short circuit, and over temp. It is
perfect in many off-grid applications, like solar or energy storage
system, backup power, RV, security or surveillance systems and more
capability of EA ENERGY lithium iron phosphate battery is under
exploration.
Automotive Grade Lithium Battery: We adopt Automotive Grade LiFePO4
Cells with higher energy density, more stable performance & greater
power, and insist on providing customer with environmentally
friendly green power solution. All Ampere Time battery meets UL
Testing, CE, FCC, ROHS, PSE, IP65 certifications. Highest grade of
battery cell and authoritative accreditation enable Ampere Time
battery growing as LiFePO4 battery leader.
Easy to carry, light weight, high capacity, high release platform,
long working hours, long life circle.
Scope of application: Motors, RVs, outdoor camping, xenon
lamps/searchlights, inverters, handheld devices, wireless
communication equipment, surveillance equipment, electrical
equipment, medical equipment, rescue equipment, emergency
lighting/LED lights, traffic signs, portable small household
appliances, electric tools, automotive and industrial equipment
backup power, etc.
Applications: Passenger and commercial plug-in hybrid electric
vehicles (PHEVs) / Passenger and commercial battery electric
vehicles (BEVs) / Solar power storing ,e-bike , e scooter, golf
cart And Others./ wildly use battery, model aircraft, electric
tools, power tools , Golf carts, sightseeing coaches, battery pack
,solar energy, inverters and others
Safety notice: Do not put the battery in water or get wet , Keep
the battery away from heat, Do not throw the battery into the fire
or heat the battery, Do not hammer the battery, It is forbidden to
disassemble the battery in any way.
LiFePO4 Prismatic Cells Specifications:
| Typical Capacity | 135Ah |
| Typical Voltage | 3.2V |
| AC Impedance Resistance | ≤0.25mΩ-0.5mΩ |
| Standard charge and discharge Charge/Discharge Current | 0.5C/0.5C |
| Standard charge and discharge Charge/Discharge Cut-off Voltage | 3.65V/2.5V |
| Continuous Charge/Discharge Current | 3C/3C-1C/1C |
| Pulse Charge/Discharge Ccurrent(30s) | 5C/5C-1C/2C |
| Dimension | H174mm*W48mm*T155mm |
| Charging Working Temperature | 0℃～55℃ (0℃～60℃) |
| Discharging Working Temperature | -20℃～55℃ (-30℃～60℃) |
LiFePO4 Prismatic Cells Products Details :
LiFePO4 Prismatic Cells Applications:
Prismatic Battery cells
wildly use for bfor Electric bicycle/motorcycle/scooter energy
storage, solar power system, UPS electric appliances power supply,
golf trolley/carts power tools.
