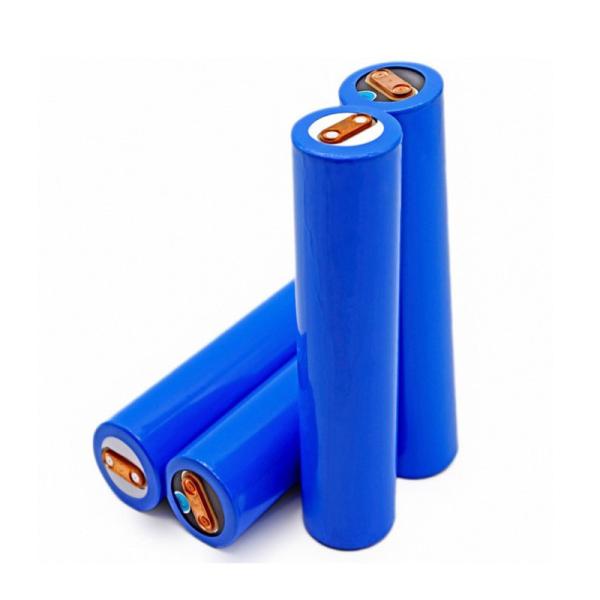

High Power 3.2v 15Ah 33140 LiFePO4 Battery Cells 5000 Cycles Life
3.2v 15Ah 33140 High Power Rechargeable LiFePO4 Battery Cells For
12v 24v E-Scooter Power Tools
LiFePO4 Battery Cells details:
1. Diameter*Height : 33*140mm ( LiFePO4 33140 size )
2. Nominal Voltage : 3.2V
3. Nominal Capacity : 15Ah 48Wh
4. Cycle life : 3000 cycles
5. Standard charging ways : CC / CV
6. Li-ion / Lithium Ion LiFePO4 battery cell
7. CE , UL , UN38.3 , MSDS compliant
Rechargeable Battery Cell Description:
EA Energy has 14 years of experience in lithium battery production!
Safe and environmental friendly, tested under strict quality
control standards.
Low re-occurring operation cist, short-circuit and over-current
protection.
premium environment friendly rechargeable battery with high
temperature PVC wrapper, no toxic waste.
High energy density and long lasting power batteries, ensure
extreme long charging circles, great for long term daily use.
Widely Applications:Electric vehicle, Electric Bicycle, Tricycle,
scooter, Solar supply system,solar panel, electric tools.
Nominal voltage: 3.2v
Battery resistance: ≤2.5mΩ
The maximum charging current:3C
Maximum charging voltage: 3.65±0.05V
The maximum discharge current (continuous): 0.5C
The maximum discharge current (instantaneous pulse): 3C
Discharge voltage: 2.0V
Size Φ33±1mm*H140±1mm
Weight: 300g
Cycle life: >3000 Operating
temperature: -10~45℃
Storage temperature Within a month: -20~40℃
Within 6 months -20~35℃
Battery Safety Warnings: Mishandling of the battery may cause heat,
fire, damages, and deterioration in performance.
Easy to install,High capacity, long life and lasting performance.
We can also customize any size and function you need.Such as
12V/24V/36v/48v/60V/72v 20AH, 50AH,100h, 120ah, 150ah,200ah, 300ah,
400ah, 800ah etc..
LiFePO4 Battery Cells Specifications :
| Item | 33140 LiFePO4 battery cell |
| Model | 33140 |
| Dimension | 33*140mm |
| Continuous discharging current | 1C~3C |
| Peak discharging current | 3C |
| Max charge current | 3C |
| Certificate | CE/IEC62133/MSDS/UN38.3 |
| Cycle life | 2000~3000 times |
| Lead time | 3-5 days for samples |
| 12-15 days for production |
LiFePO4 Battery Cells Details:
LiFePO4 Battery Cells Applications:
Perfect for EV, Fork Lift, E-Bike, Power tools, Garden tools, solar, High
Drain Devices, DIY powerwalls, ebikes, EV, electric vehicles, car
audio, ham radio...ect
