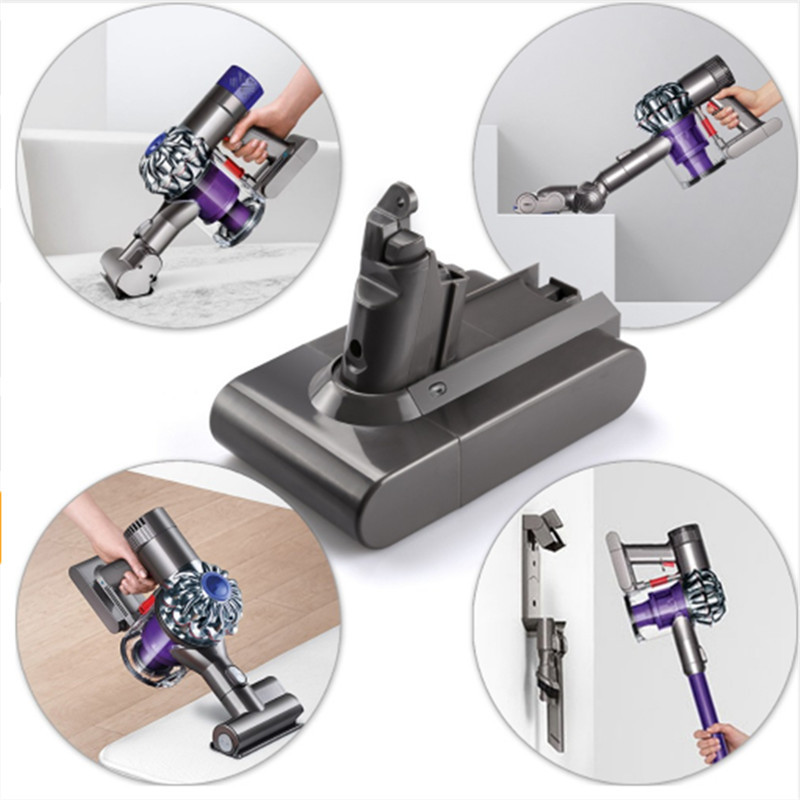

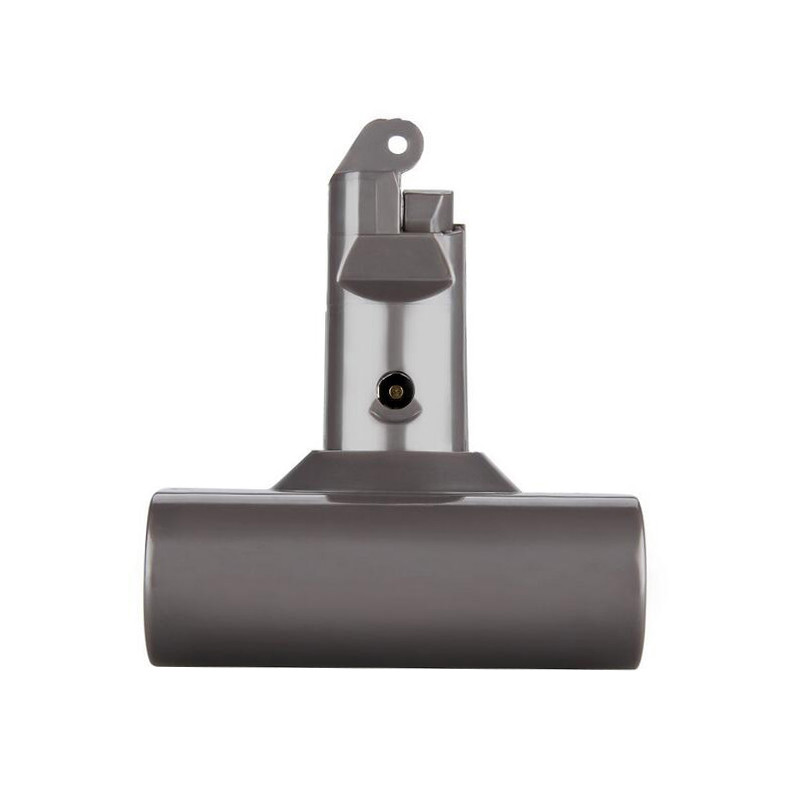

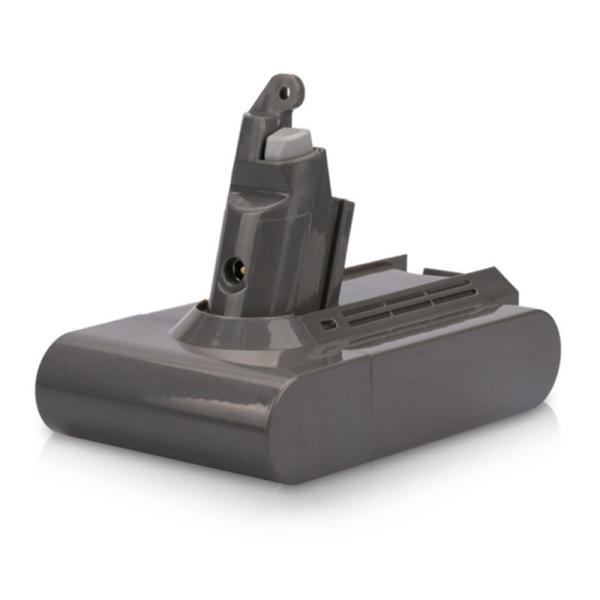

V6 Replacement Power Tool Lithium Ion Battery For Dyson Vacuum
21.6V 3.0AH V6 Replacement Battery For Dyson DC58 DC59 DC61 DC62
SV04 SV05 Hand-Held Vacuum Power Tool Battery
Power Tool Replacement Battery details:
1. Diameter*Height: 103L*74mmH *43mmW
2. Nominal Voltage: 21.6V
3. Nominal Capacity: 75W
4. Cycle life: 1000 cycles
5. Standard charging ways: CC / CV
6. Li-ion / Lithium Ion rechargeable battery
7. CE , UL ,UN38.3 , MSDS compliant
V6 Replacement Battery Description:
Replacement Battery for V6 Series : This battery is the replacement
for Dyson cordless vacuum V6 series, Battery type: Lithium-ion.
Voltage: 21.6v. Capacity: 3500 mAh
High Quality Materials : Made of high quality cells ensure fast
charging and low power consumption. Cooper alloy interface, ABS +
PC plastic shell, and comes with a plastic cover that leaves the
interface dust-free
Higher Capacity : The upgraded 3500 mAh battery offers longer life,
which has higher quality and longer working time. The size and
performance are the same as the original battery and you can still
wall charge it.
Security : backup battery, using EPC technology, provides overheat
protection, overvoltage protection, overdischarge protection,
overvoltage protection, overcharge protection, and overcurrent
protection. The battery is CE / FCC / RoHS certified for fast
charging, low power consumption, safety, stability and more.
Perfect Compatibility : 21.6 V replacement battery is fully
compatible with Dyson V6 SV03 SV04 SV05 SV06 SV07 SV09, also
suitable for Dyson DC58, DC59, DC61, DC62, DC72, DC74, 965874-02
204720-01 209432 -01 209472- 01 209476-01 209560-01 210691-01
210692-01
Power Tool Battery Chips(PCB) are manufactured by our
co-manufacturers.High discharge rate current,Always at on-off
working situation means PCB is the most important component.So the
IC,MOS and IR we required all imported from Japan.The raw materials
are purchased by us and assembled/printed by our co-manufacturer.
Power Tool Replacement Battery Specifications:
Item | Specifications |
Compatibility | Dyson V8 Battery |
Typical Capacity | 3000mAh @ 1C Discharge |
Minimum Capacity | 2900mAh @ 1C Discharge |
Nominal Voltage | 21.6V |
Standard Charge | CC/CV, 400mA, 25.2V |
Standard Discharge | CC, 1C, 18.0V |
End-of-charge Voltage | 25.2V ± 0.3V |
End-of-charge Current | 0.02C (At CV mode) |
End-of-discharge Voltage | 15.0V |
Charging Time | 6 hours (standard charge) |
Power Tool Replacement Battery Products Details :
Power Tool Replacement Battery Applications:
This Lithium Battery Replacement for Dyson DC58 DC59 DC61 DC62 DC72
DC74 V6 Absolute V6 Animal Motorhead V6 Slim SV03 SV04 SV05 SV06
SV07 SV09 967810-23 V6 Fluffy Vacuum Battery
