2kw 48v Off Grid Pure Sine Wave Inverter 2000w Battery Power
Storage Systems Inverter
2000w Battery Power Storage Systems Inverter Details :
1. Diameter*Height : 426mm*322mm*126mm
2. Rated AC Input Voltage: 220/230Vac
3. Rated Output Voltage: 230(208/220/230Vac)
4. MPPT Voltage Range: 120-450Vdc
5. Warrenty: 5 Years
2000w Battery Power Storage Systems Inverter Specifications :
Model:FT- | 3KW |
Rated power | 3000W |
Battery | Rated voltage | 12/24/48VDC |
| Charge current | 30A(default)-C0-C6can be set |
| Battery type | U0-U7 can be set |
Input | Voltage range | 85-138VAC/170-275VAC |
| Frequency | 45-65Hz |
Output | Voltage range | 110VAC/220VAC；±5%( Inversion mode) |
| Frequency | 50/60Hz±1%( Inversion mode) |
| Output wave | pure sine wave |
| Switching time | ＜10ms( typical load) |
| Efficiency | ＞85%(80% Resistance load) |
| Overload | 110-120%/30S；＞160%/300ms； |
| Protection | Battery overvoltage /lowvoltage, overload, short circuit
protection, overtemperature protection, etc. |
Operating ambient temperature | 0-40℃ |
Storage ambient temperature | -15 - +50℃ |
Operating/Storage ambient | 0-90% No condensation |
Machine Size: L*W*H (mm) | 486*247*179 |
Package size: L*W*H(mm) | 550*310*230 |
2000w Battery Power Storage Systems Inverter Description :
features:

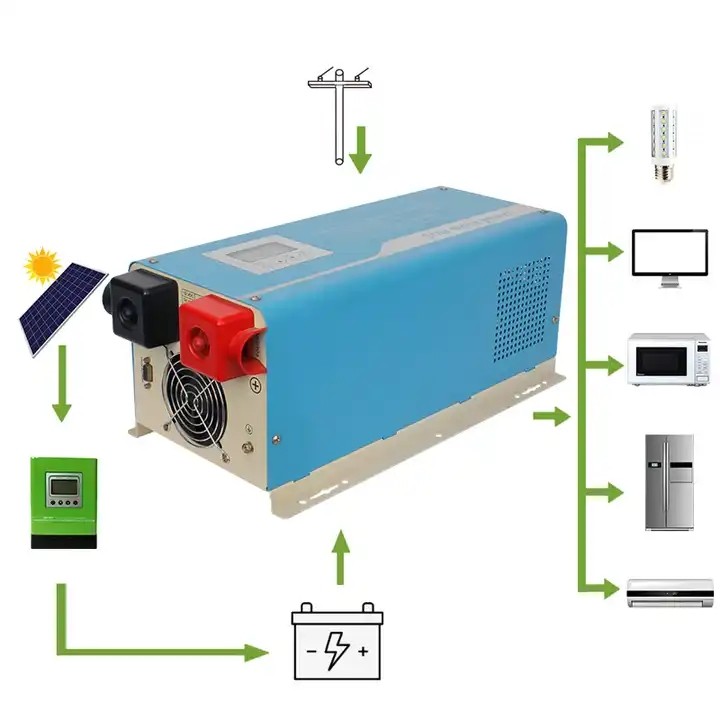

a 2kw solar inverter converts dc power generated by solar panels
into ac power that can be used to power appliances and other
electrical devices.
the power storage systems inverter has a maximum power point
tracking (mppt) feature, which optimizes the power output of the
solar panels by tracking and adjusting for changes in the sun's
intensity and angle.
this power storage systems inverter is designed to handle a maximum
dc input voltage of 500v, which is suitable for installations with
multiple panels wired in series.
it also features multiple protection mechanisms including
overvoltage, overcurrent, and overheating protection.
advantages:
the inclusion of an mppt feature means the solar panels will
generate more electricity which leads to higher efficiency.
with a maximum dc input voltage of 500v, it can support long string
design for easier installation process.
multiple protections keep the system safe and ensure the longevity
of the inverter.
lower energy cost due to reliance on renewable sources of energy
such as sunlight.
2000w Battery Power Storage Systems Inverter Details :
2000w Battery Power Storage Systems Inverter Applications :
A 2kW solar inverter with MPPT is ideal for residential or small
commercial installations where space is limited, and power demand
is not high. By converting the DC power from the solar panels into
AC power, this inverter can power household electrical devices and
can reduce overall energy costs for the user. Considering the
limited capacity of 2kW, it can only cater to basic home appliances
like lights, fans, televisions, computers etc. Nonetheless, usage
of these common household electronic devices running through solar
energy is benefitting the environment by reducing carbon footprint.
