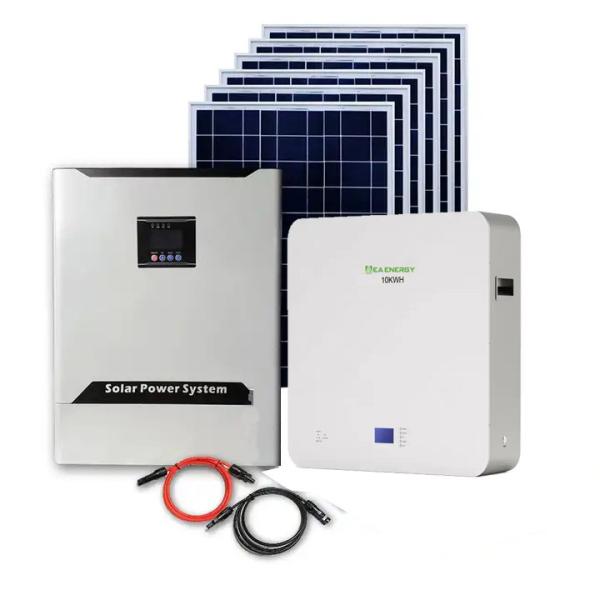

48V 10kW Residential Battery Storage Systems 200Ah Household
Battery Backup System
Residential Battery Storage Systems details :
1. Diameter*Height : 1.6CBM / 4carton / GW: 220kg
2. Nominal Voltage : 51.2V
3. Nominal Capacity : 200Ah
4. Cycle life : 6000 cycles
5. Standard charging ways : CC / CV
6. With 5kw Off-Grid Inverter
7. BMS inside ,CE , UL , UN38.3 , MSDS compliant
8. Warrenty: 10 Years
Residential Battery Storage Systems Specifications :
Item | Part | Specification | Quantity | Remarks |
1 | Solar panel | Mono 550W | 6pcs | connection method:16 strings |
2 | Bracket | |
1set
| Aluminum Alloy |
3 | Inverter built-in controller | 5K-48V-80A | 1set | 1. AC Input voltage range: 170VAC-280VAC.
2. AC Output voltage: 230VAC.
3. Pure sine wave, high frequency output.
4. Max PV Power: 5000W.
5. Max PV Voltage : 500VDC. |
4 | Lithium Battery | 48V-200AH | 1pcs | 1 parallels
Total release power:5KWH |
5 | Connector | | 2pairs | |
6 | PV cables (solar panel to Inverter) | 6mm2 | 60m |
If the client wants longer cables, the price needs to be confirmed
again.
|
7 | BVR Cables(Inverter to DC Breaker) | 35mm2
2m | 2pcs | |
8 | BVR Cables(Battery to DC Breaker) | 25mm2
2m | 4pcs | |
9 | DC Breaker | 2P 125A | 1pc | |
10 | AC Breaker | 2P 32A | 1pc | |
Residential Battery Storage Systems Description :
the residential battery storage systems combination of a 51.2v
200ah lithium iron phosphate battery, 6pcs 550w solar panels, and a
5kw inverter is suitable for your home's energy consumption of
approximately 10~15 kwh per day.
connect the six 550w solar panels in series to produce a total
output of 3300w.
install one 5kw inverter to convert dc energy produced by the
panels to ac energy that can be used to power your home or
business.
connect the inverter to the 51.2v 200ah lithium iron phosphate
battery as a backup power source.
install charge controllers to regulate the amount of energy being
charged into the battery.
with this residential battery storage systems, you can generate
your own electricity, giving you independence from the grid in case
of power outages or emergencies.
lithium iron phosphate batteries are known for their durability and
low maintenance requirements, making them a cost-effective choice
for long-term use.
Residential Battery Storage Systems Details :
Residential Battery Storage Systems Applications :
This solar home energy storage system can be applied in various
settings, such as:
Remote cabins or vacation homes without access to the power grid
Off-grid homes or communities seeking energy independence
Urban homes looking to reduce their reliance on the power grid and
save money on electricity bills
Also It can be used to power small homes, cabins, boats, and RVs,
among other applications.
