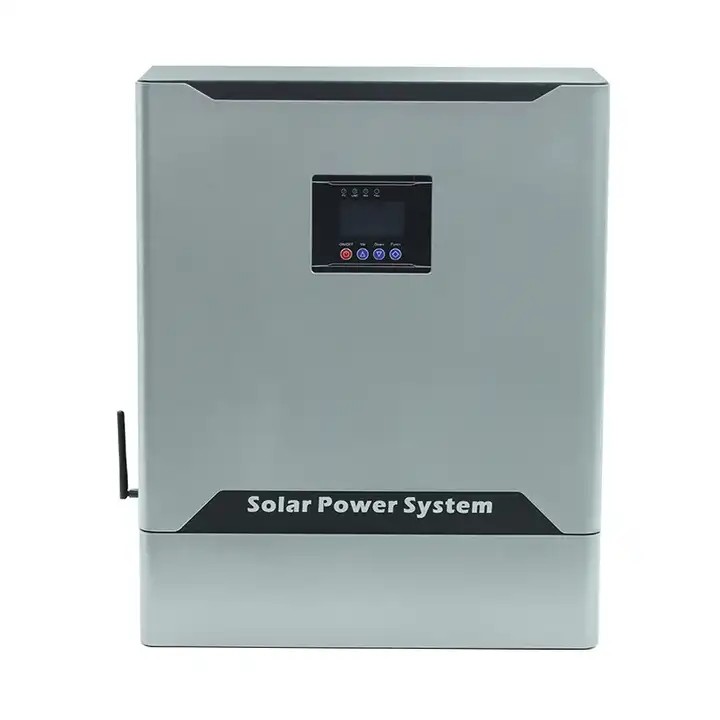

8kW Solar Energy System With MPPT 36V 200Ah Battery Backup Power
For Home
8kW Solar Energy System details :
1. Diameter*Height : 1.0CBM / 4carton / GW: 170kg
2. Nominal Voltage : 38.4V
3. Nominal Capacity : 200Ah
4. Cycle life : 6000 cycles
5. Standard charging ways : CC / CV
6. With 5kw Off-Grid Inverter
7. BMS inside ,CE , UL , UN38.3 , MSDS compliant
8. Warrenty: 10 Years
8kW Solar Energy System Specifications :
Model: MPPT | 0.3-1KW | 1.5-6KW |
power rating(w) | 300 | 700 | 1500 | 3000 | 5000 |
500 | 1000 | 2000 | 4000 | 6000 |
Battery | rated voltage(VDC) | 12/24 | 12/24/48 | 24/48 | 48/96 |
Charge Current | 10A MAX | 30A MAX |
Battery Type | Can be set |
Input | Voltage Range | 85-138VAC/170-275VAC |
frequency | 45-65Hz |
Output | Voltage Range | 110VAC/220VAC; ±5%( Inverter mode) |
frequency | 50/60Hz±1%( Inverter mode) |
Output wave | Pure Sine Wave |
Change time | ＜10ms(Typical load) |
Efficiency | ＞85%(80% Resistive load) |
overload | 110-120%/30S；＞160%/300ms； |
Protection function | Battery over-voltage and low-voltage protection, overload
protection, short circuit protection, over-temperature protection |
Solar Controller | MPPT Voltage Range | 12VDC:15V~150VDC;24VDC:30V~150VDC;48VDC:60V~150VDC；120V~150VDC |
PV Power | 12VDC-30A(400W);
24VDC-30A(800W) | 12VDC-60A(800W);
24VDC-60A(1600W);
48VDC-60A(3200W)
96VDC-60A(6400W) |
Rated charge current | 30A(Max) | 60A(Max) |
MPPT efficiency | ≥99% |
Average charging voltage(lead acid battery | 12V/14.2VDC;24V/28.4VDC;48V/56.8VDC |
Floating charge voltage | 12V/13.75VDC;24V/27.5VDC;48V/55VDC |
Operating ambient temperature | -15-+50℃ |
Storage ambient temperature | -20 - +50℃ |
Operating / storage environment | 0-90% No Condensation |
Dimensions:W * D * H (mm) | 420*320*122 | 520*420*222 |
Packing size: W * D * H (mm) | 535*435*172 | 635*535*252 |
8kW Solar Energy System Description :
This home energy storage system including 6 x 350w solar panels, 1
x 3kw mppt controller, and 3 x 12v 200ah batteries
the system's main features are:
1.high power generation potential: with a total of 2100 w of solar
panel capacity, this system can generate a significant amount of
electricity, depending on the location and time of year.
2. efficient charging: the mppt controller will help maximize the
charging efficiency of the batteries, ensuring that they are
charged as quickly and effectively as possible.
3. large storage capacity: with three 12v 200ah batteries, this
system has a total capacity of 7200 wh, which should be enough to
power an average household for several hours or more.
4. scalability: this system can be expanded by adding more solar
panels, batteries, or controllers as needed, depending on the
user's energy needs.
the cost advantages of this 8kW Solar Energy System compared to
traditional grid-tied electricity include:
1. lower electricity bills: by generating their own electricity,
users can save money on their utility bills over time.
2. reduced carbon footprint: solar power is a clean, renewable
energy source that produces no harmful emissions, making it a more
environmentally friendly option than fossil fuels.
3. energy independence: this system provides users with greater
control over their energy usage, which can be especially important
in areas with unreliable or limited grid access.
4.independence: with this system, you can generate your own
electricity, giving you independence from the grid in case of power
outages or emergencies.
5.eco-friendly: using renewable energy sources like solar power and
lithium iron phosphate batteries significantly reduces greenhouse
gas emissions, promoting environmental sustainability.
this home Solar Energy System is suitable for a wide range of
residential applications, including powering household appliances
and electronics, providing backup power during outages, and even
supporting off-grid living in some cases. however, it's important
to note that the actual performance and suitability of the system
may vary depending on factors like climate, location, and overall
energy consumption patterns.
8kW Solar Energy System Details :
8kW Solar Energy System Applications :
This solar home energy storage system can be applied in various
settings, such as:
Remote cabins or vacation homes without access to the power grid
Off-grid homes or communities seeking energy independence
Urban homes looking to reduce their reliance on the power grid and
save money on electricity bills
Also It can be used to power small homes, cabins, boats, and RVs,
among other applications.
