10kW 48V 200Ah Deep Cycle Solar Panel Energy Storage System With
MPPT Inverter
10kW Solar Panel Energy Storage System details :
1. Diameter*Height : 1.7CBM / 4carton / GW: 170kg
2. Nominal Voltage : 51.2V
3. Nominal Capacity : 200Ah
4. Cycle life : 6000 cycles
5. Standard charging ways : CC / CV
6. With 5kw Off-Grid Inverter
7. BMS inside ,CE , UL , UN38.3 , MSDS compliant
8. Warrenty: 10 Years
10kW Solar Panel Energy Storage System Specifications :
Model: MPPT | 0.3-1KW | 1.5-6KW |
power rating(w) | 300 | 700 | 1500 | 3000 | 5000 |
500 | 1000 | 2000 | 4000 | 6000 |
Battery | rated voltage(VDC) | 12/24 | 12/24/48 | 24/48 | 48/96 |
Charge Current | 10A MAX | 30A MAX |
Battery Type | Can be set |
Input | Voltage Range | 85-138VAC/170-275VAC |
frequency | 45-65Hz |
Output | Voltage Range | 110VAC/220VAC; ±5%( Inverter mode) |
frequency | 50/60Hz±1%( Inverter mode) |
Output wave | Pure Sine Wave |
Change time | ＜10ms(Typical load) |
Efficiency | ＞85%(80% Resistive load) |
overload | 110-120%/30S；＞160%/300ms； |
Protection function | Battery over-voltage and low-voltage protection, overload
protection, short circuit protection, over-temperature protection |
Solar Controller | MPPT Voltage Range | 12VDC:15V~150VDC;24VDC:30V~150VDC;48VDC:60V~150VDC；120V~150VDC |
PV Power | 12VDC-30A(400W);
24VDC-30A(800W) | 12VDC-60A(800W);
24VDC-60A(1600W);
48VDC-60A(3200W)
96VDC-60A(6400W) |
Rated charge current | 30A(Max) | 60A(Max) |
MPPT efficiency | ≥99% |
Average charging voltage(lead acid battery | 12V/14.2VDC;24V/28.4VDC;48V/56.8VDC |
Floating charge voltage | 12V/13.75VDC;24V/27.5VDC;48V/55VDC |
Operating ambient temperature | -15-+50℃ |
Storage ambient temperature | -20 - +50℃ |
Operating / storage environment | 0-90% No Condensation |
Dimensions:W * D * H (mm) | 420*320*122 | 520*420*222 |
Packing size: W * D * H (mm) | 535*435*172 | 635*535*252 |
10kW Solar Panel Energy Storage System features :
This home energy storage system including 8 x 350w solar panels, 1
x 5kw mppt controller, and 4 x 12v 200ah batteries
the system's main features are:
1. large storage capacity: with three 12v 200ah batteries, this
system has a total capacity of 7200 wh, which should be enough to
power an average household for several hours or more.
2.high power generation potential: with a total of 2100 w of solar
panel capacity, this system can generate a significant amount of
electricity, depending on the location and time of year.
3. efficient charging: the mppt controller will help maximize the
charging efficiency of the batteries, ensuring that they are
charged as quickly and effectively as possible.
4. scalability: this system can be expanded by adding more solar
panels, batteries, or controllers as needed, depending on the
user's energy needs.
the cost advantages of this 10kW Solar Panel Energy Storage System
compared to traditional grid-tied electricity include:
1. lower electricity bills: by generating their own electricity,
users can save money on their utility bills over time.
2. energy independence: this system provides users with greater
control over their energy usage, which can be especially important
in areas with unreliable or limited grid access.
3. reduced carbon footprint: solar power is a clean, renewable
energy source that produces no harmful emissions, making it a more
environmentally friendly option than fossil fuels.
4.eco-friendly: using renewable energy sources like solar power and
lithium iron phosphate batteries significantly reduces greenhouse
gas emissions, promoting environmental sustainability.
5.independence: with this system, you can generate your own
electricity, giving you independence from the grid in case of power
outages or emergencies.
there are several reasons why many countries are now using solar
energy storage systems. one of the main benefits is that solar
energy is a clean, renewable source of energy that does not produce
harmful emissions or waste. this makes it an attractive option for
countries looking to reduce their carbon footprint and transition
towards more sustainable forms of energy.
10kW Solar Panel Energy Storage System Details :

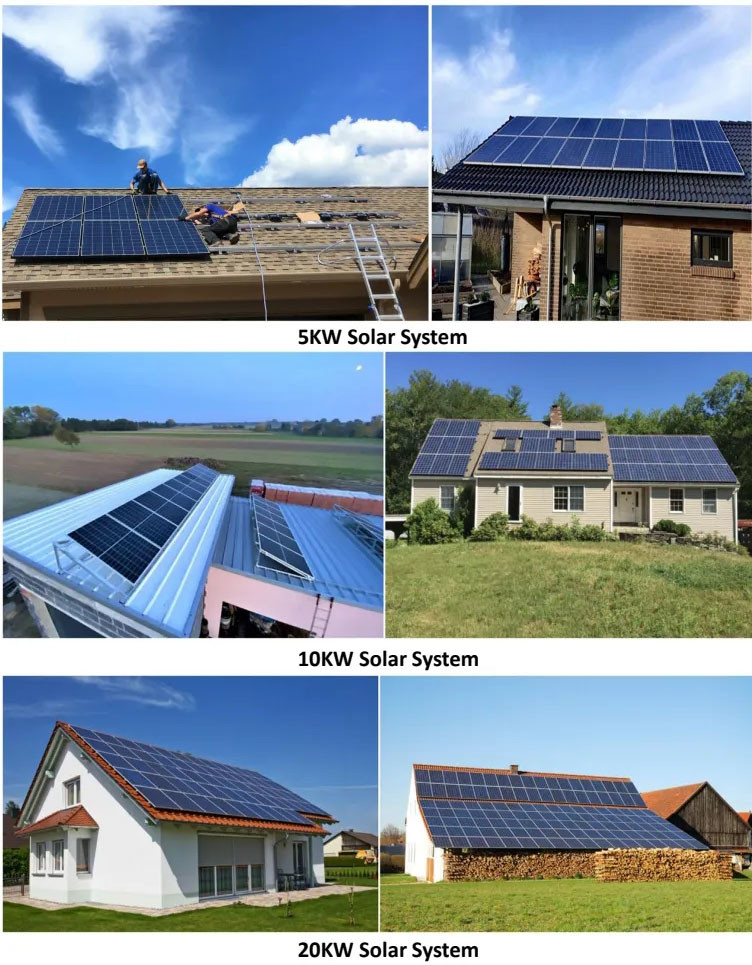

10kW Solar Panel Energy Storage System Applications :
This solar home energy storage system can be applied in various
settings, such as:
Remote cabins or vacation homes without access to the power grid
Off-grid homes or communities seeking energy independence
Urban homes looking to reduce their reliance on the power grid and
save money on electricity bills
Also It can be used to power small homes, cabins, boats, and RVs,
among other applications.
