205KWh Commercial Energy Storage System Smart Energy Storage
Cabinet With 100kw pcs
100kw/205kwh Commercial Energy Storage Cabinet details :
1. Diameter*Height : 1550*1194*2164mm
2. DC Nominal Voltage : 811.2~1138.8Vdc
3. Nominal Energy : 205kwh
4. AC Rated output power(kW) : 100kw
5. Cycle life : 6000 cycles
6. Standard charging ways : CC / CV
7. With RS485 RS232 CAN
8. BMS inside ,UL1973/UL9540A//UL9540/IEC62619/IEC63056/IEC62933
9. Warrenty: 5 Years
100kw/205kwh Commercial Energy Storage system Specifications :
| Model | BCS-100K-B-HM |
| Nominal Energy | 205kWh |
| DC Voltage Range | 1108.8~1425.6Vdc |
| Rated grid voltage(Vac) | 400 (3P3W) |
| Rated output power(kW) | 100KW |
| Working Temperature | -20~55℃ |
| Humidity | 0-95% RH |
| Protection Rating | IP65 |
| Cooling method | Liquid cooled system |
| Fire suppression system | Heptafluoropropane/Perfluorohexan |
| Elevation | ＜4000ma |
| Weight | ≈2500KG |
| Number of battery clusters | 13 |
| Communication | CAN/RS485/Ethernet |
| Certificate | UL1973/UL9540A//UL9540/IEC62619/IEC63056/IEC62933 |
100kw/205kwh Commercial Energy Storage system Features:
100KW/205KWh outdoor energy storage cabinet, with a grid voltage of
400V, used for energy storage projects on the industrial and
commercial user side. It can achieve functions such as peak shaving
and valley filling, dynamic capacity increase, and backup power
supply.
All equipment is integrated into one standard cabinet, which
includes: power distribution system (including integrated energy
storage control unit), energy storage converter (PCS), battery
cluster, fire protection system, environmental control system (air
conditioning and air cooling), monitoring system,etc.
100kw/205kwh Commercial Energy Storage Cabinet distribution :
1.The energy storage converter is selected as a non isolated type
with an AC output of 400 (3P3W).
2.This smart energy storage cabinet single cell is 3.2V/206Ah
lithium Iron phosphate cell, and the charge discharge ratio is
0.5C. The battery pack is 1P24S, and the battery cluster consists
of 13 battery packs connected in series to form one battery
cluster.
3.The battery module is designed with 3.2V/206Ah lithium iron
phosphate cell 1P24S. Each battery module is composed of two 1P12S
modules in series to form 76.8V/206Ah, with a total energy of
15.821KWh. At the same time, an internal collection harness and BMU
are installed to collect the voltage and temperature of the battery
cell.
4.The battery cluster adopts 13pcs of 1P24S battery modules in
series, and also comes with a high-voltage box, which integrates
BCMU internally.
5.The Battery management system (BAMS) of this Commercial Energy Storage Cabinet processes the battery information uploaded by the battery
cluster control unit (BCMU), and has the functions of display,
parameter setting, fault alarm,data recording, etc. It communicates
with the energy management system (EMS) through the protocol
converter.
6. this 100kw/205kwh commercial energy storage cabint system
including fire protection system, environmental control system (air
conditioning and air cooling), monitoring system

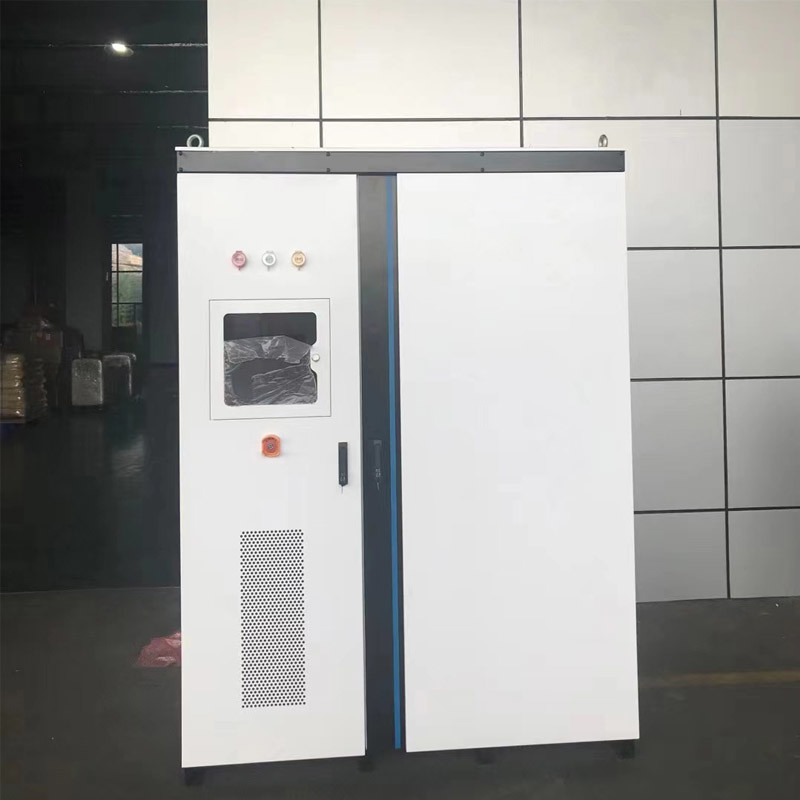

100kw/205kwh Commercial Energy Storage system Details :
100kw/205kwh Commercial Energy Storage system Applications :
this Commercial energy storage cabinet offer various benefits,
including load shifting to reduce electricity costs, grid
stabilization by balancing supply and demand, integration of
renewable energy sources, and increased reliability for critical
operations. These systems can be customized to meet specific power
and capacity requirements, allowing businesses to effectively
manage their energy consumption and improve overall efficiency.
